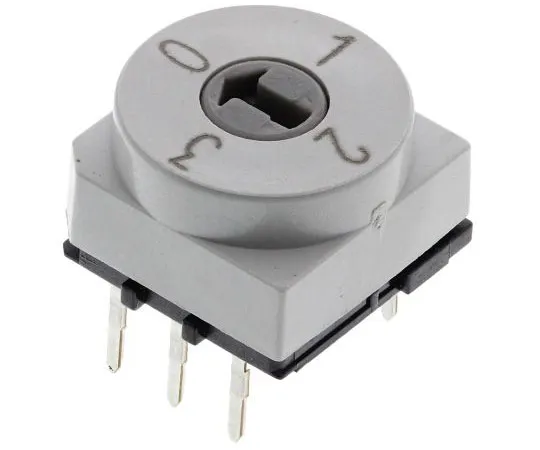

63-7514-92 4 Way Through Hole DIP Switch, Rotary Flush Actuator PT65121
Product Description
Product Model: 63-7514-92Product Brand: Hartmann Featur […]
Contact Us
Product Details
Product Model: 63-7514-92
Product Brand: Hartmann
Features
- Slotted Head Rotary Encoder. Flux sealed ; process washable Contact rating: 150mA @ 24Vdc Contact resistance: ;80mΩ Life: >10 ;sup>4 ;/sup> operations Positive detent Soldering temperature: 340°C max. for 2s max. (40 watt iron max.) or 260°C for 10s max. Gold plated contacts
Spec
- Quantity:1piece
- Contact Current Rating : 150 mA@ 24 V dc
- Contact Material : Gold over Nickel Plated Phosphor Bronze
- Number of Positions : 4
- Mounting Type : Through Hole
- Actuator Type : Rotary Flush
- Package Style : DIP
- Mechanical Life : 10000Operations
- Maximum Operating Temperature : +70°C
- Minimum Operating Temperature : -20°C
- Operating Temperature Range : -20 → +70°C
- CODE No.:379-3799
