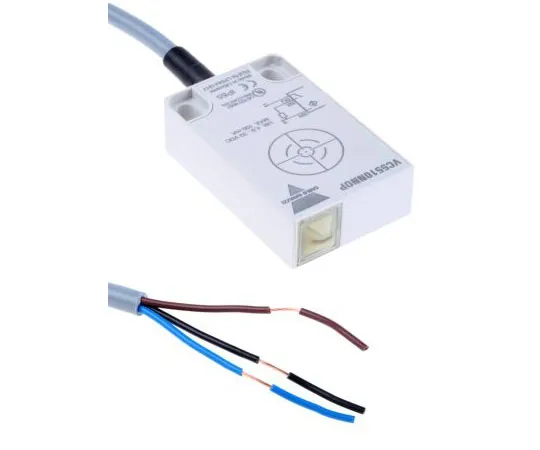

63-7514-29 Carlo Gavazzi Level Sensor NPN Output VC5510NNOP
model:
63-7514-29
brand:
Carlo Gavazzi
Product Description
Product Model: 63-7514-29Product Brand: Carlo Gavazzi F […]
Contact Us
Product Details
Product Model: 63-7514-29
Product Brand: Carlo Gavazzi
Features
- UL. Capacitive Level Sensor. CE marked in compliance with relevant European Directives. Sensing range 2 to 10mm adjustable via a single turn potentiometer LED indication when activated Output: DC 100mA transistor Power ON delay; Max 40ms (No delay version), Max 5s (ON/OFF delay versions) Supply voltage; 5-30Vdc No load current; ≤10mA Operating temperature range 0 to + 50°C Housing material; grey ABS and polycarbonate Ingress protection to IP65 1.5 m, 3 x 0.3mm2 PVC cable
Spec
- Quantity:1piece
- Device Type : Capacitance
- Switch Output : NPN
- Body Material : ABS, Polycarbonate
- Cable Length : 1.5m
- Minimum Operating Temperature : 0°C
- Maximum Operating Temperature : +50°C
- Maximum DC Voltage : 30V
- Maximum Current : 100 mA
- CODE No.:377-9793
