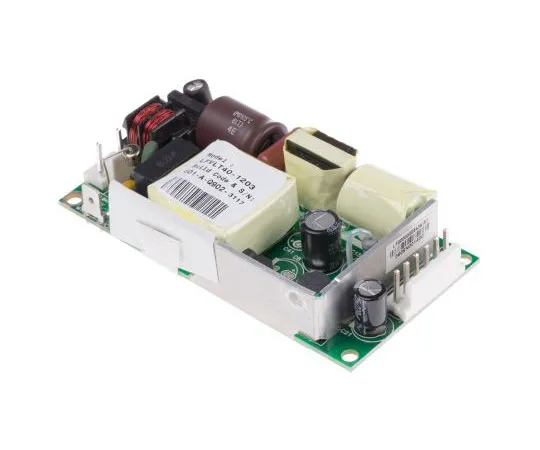

63-7513-72 EOS 40W 1 Output Embedded Switch Mode Power Supply SMPS, 1.7A, 24V dc Open Frame LFVLT40-1203
Product Description
Product Model: 63-7513-72Product Brand: EOS Features IE […]
Contact Us
Product Details
Product Model: 63-7513-72
Product Brand: EOS
Features
- IEC950, EN60950, UL1950. VDE; UL Recognised Component. Connectors are not supplied. VLT130 current rating with Fan (180LFM). Power rating with forced airflow, requires ***r supplied 15CFM fan. 40W to 130W Universal Input, Single/Multi Output VLT Series. Overvoltage, power limit and short circuit protection EMI/RFI to CISPR 55011//14-B. FCC 15-B High reliability MTBF>100,000 hours Optional covers available, see stk nos. ; 377-6968 377-6968 or ; 396-1942 396-1942 Power factor correction to EN61000-3-2 (VLT80 and VLT130) -20 to +50°C operating temperature
Spec
- Quantity:1piece
- Output Voltage : 24V dc
- Output Current : 1.7A
- Power Rating : 40W
- Number of Outputs : 1
- Input Voltage : 180 → 264 V ac, 90 → 132 V ac
- Mounting Type : Chassis Mount
- Package Type : Open Frame
- Length : 101.6mm
- Width : 50.8mm
- Depth : 27.18mm
- Weight : 150g
- Efficiency : 82%
- Maximum Temperature : +50°C
- Minimum Temperature : 0°C
- CODE No.:377-6839
