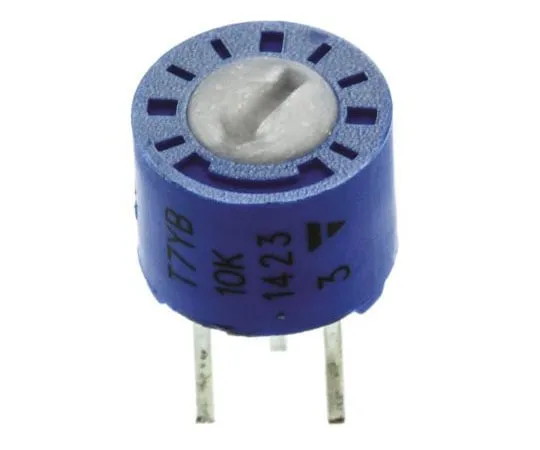

63-7512-72 10kΩ Through Hole Trimmer Potentiometer 0.5W Top Adjust Vishay T7 Series T7YB103MT20
Product Description
Product Model: 63-7512-72Product Brand: Vishay Features […]
Contact Us
Product Details
Product Model: 63-7512-72
Product Brand: Vishay
Features
- Cermet T7YB Series. Industrial Grade CECC 41100 Low temperature coefficient and high stability Clear scale reading for ease of adjustment IP64 - sealed for dust and PC boards cleaning (not water)
Spec
- Quantity:1bag(5pieces)
- Maximum Resistance : 10kΩ
- Mounting Type : Through Hole
- Number of Turns : 1
- Orientation : Top Adjust
- Power Rating : 0.5W
- Series : T7
- Termination Style : Pin
- Tolerance : ±10%
- Temperature Coefficient : ±100ppm/°C
- Shaft Diameter : 4 mm
- Diameter : 7mm
- Minimum Operating Temperature : -55°C
- Maximum Operating Temperature : +125°C
- CODE No.:374-6923
