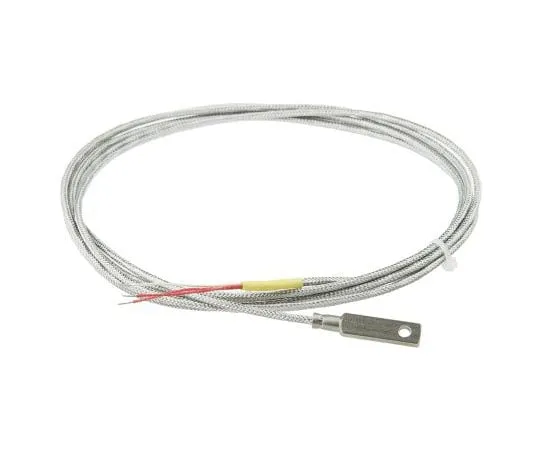

63-7512-25 Electrotherm PT100 Sensor, -50°C min +400°C max, 40mm Probe Length x M4 Probe Diameter K10-E-3LS-400
Product Description
Product Model: 63-7512-25Product Brand: Electrotherm Fe […]
Contact Us
Product Details
Product Model: 63-7512-25
Product Brand: Electrotherm
Features
- Base values and limit deviations according to DIN EN 60751. Type K10 — High-Temperature Cable Sensor, PT100. Resistance thermometer for surface measurements Temperature measurement and monitoring on diverse application sites Temperature range: -50 °C → +200 °C or +400 °C Anti-kink spring Aluminium housing (8 x 8 x 40 mm) with fixing centre and connection lead Three-conductor circuit Accuracy class B 2.5 m connection lead 400 °C version with cable sheathing reinforced with fibre glass
Spec
- Quantity:1piece
- Sensor Type : PT100
- Probe Length : 40mm
- Probe Diameter : M4
- Minimum Temperature Sensed : -50°C
- Maximum Temperature Sensed : +400°C
- CODE No.:373-6752
