Electronic/Electrical Parts and Controll Equipments

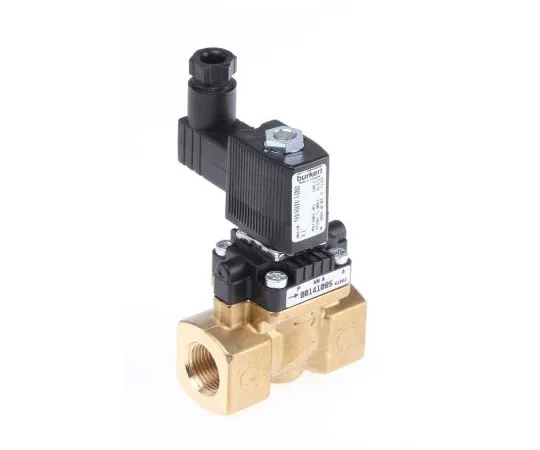

63-7511-47 Burkert Solenoid Valve 140846, 2 port , NC, 230 V ac, 3/8in 140846
Product Description
Product Model: 63-7511-47Product Brand: Burkert Feature […]
Contact Us
Product Details
Product Model: 63-7511-47
Product Brand: Burkert
Features
- Only *** on mediums suitable for NBR seal material and brass. 6211 Series 2//2 way Servo-Assisted, Normally Closed Solenoid Valves. Brass body with separating servo membrane and polyamide coil Total or no control For *** with gas, air, water and oils, other liquids that do not contain oils or greases, hot water up to 70°C, alkaline and bleaching detergents NBR seal material Maximum viscosity 22 mm 2 /s 0.5 to 10 bar pressure range Ambient temperature range 0 to +70°C Power consumption 4W (DC Inrush); 9VA (AC Inrush); 4W (DC Hold); 6VA (AC Hold)
Spec
- Quantity:1piece
- Supply Voltage : 230 V ac
- Number of Ports : 2
- Operation : Pilot
- Connection : 3/8 in G Female
- Connection Size : 3/8in
- Default Valve Position : NC
- Suitable Applications : Liquid, Neutral Gas
- Type : 2/2
- Orifice Diameter : 10mm
- Body Material : Brass
- Maximum Working Pressure : 10 bar
- Operating Temperature Range : 0 → +55 °C
- Minimum Operating Temperature : 0°C
- Maximum Operating Temperature : +55°C
- Thread Standard or Connection Type : G
- CODE No.:370-0090
