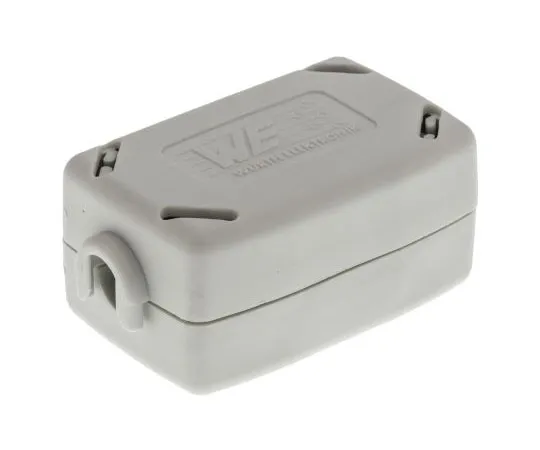

63-7510-42 Wurth Elektronik Openable Ferrite Sleeve, 23.7 x 36.9 x 18.2mm, For EMI Suppression, Apertures: 1, Diameter 6.6mm 74271112
Electronic/Electrical Parts and Controll Equipments

63-7510-42 Wurth Elektronik Openable Ferrite Sleeve, 23.7 x 36.9 x 18.2mm, For EMI Suppression, Apertures: 1, Diameter 6.6mm 74271112

model: 63-7510-42
brand: Wurth Elektronik

Product Description

Product Model: 63-7510-42Product Brand: Wurth Elektroni […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 63-7510-42
Product Brand: Wurth Elektronik

Features

  • Split Ferrite Sleeves in Plastic Shell with Snap-In Lock. STAR-TEC snap ferrites from Wurth Elektronik feature cable pinch protection, and are easy to open for measurement purposes. A prefixing cable system ensures a simple cable assembly process and a security lock prevents unauthorised removal of the ferrite from the cable. Please ****, the safety key (74271) is sold separately. Refer to < 815-0021') 815-0021/ to order the key. Suitable applications for these ferrite sleeves include internal and external computer data and power cables. Easy to remove, and featuring straightforward installation, these ferrites are ideal for cables that are difficult to access. Housing has no projecting parts Key sold separately UL94-V0 plastic case

Spec

  • Quantity:1piece
  • Series : STAR-TEC
  • Application : EMI Suppression
  • Material : 4 W 620
  • Key : No
  • Openable : Yes
  • Outer Dimensions : 23.7 x 36.9 x 18.2mm
  • Aperture Diameter : 6.6mm
  • Number of Apertures : 1
  • Outer Depth : 36.9mm
  • Outer Height : 18.2mm
  • Outer Width : 23.7mm
  • CODE No.:367-5297
