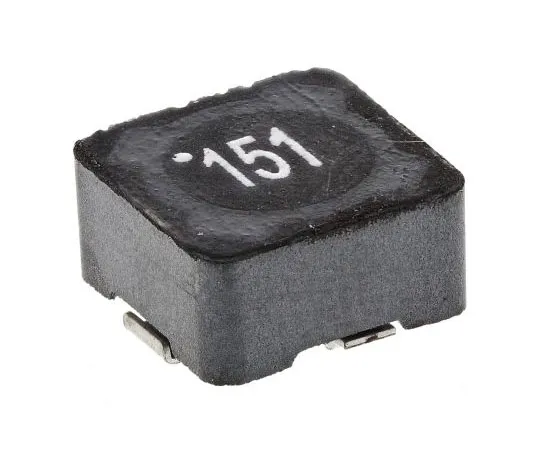

63-7510-35 Wurth WE-PD Series Shielded Wire-wound SMD Inductor with a Ferrite Core, 150 μH ±20% 520mA Idc 744777215
model:
63-7510-35
brand:
Wurth Elektronik
Product Description
Product Model: 63-7510-35Product Brand: Wurth Elektroni […]
Contact Us
Product Details
Product Model: 63-7510-35
Product Brand: Wurth Elektronik
Features
- Plastic base variant applications are particularly suited to high vibration or shock applications due to its one piece construction. WE-PD Series Magnetically Shielded Wire Wound Chokes. Wurth WE-PD wirewound surface mount inductor is magnetically shielded resulting in a low leakage field. These power inductors have high storage capacity and high current loading. Recomm***ed solder profile: Reflow. Operating temperature -40 to +125°C. Applications. Switching regulators with low operating voltages Integrated DC-DC converters Switching regulators with high efficiency (>86%) Graphic cards
Spec
- Quantity:1set(1000pieces)
- Inductance : 150 μH
- Maximum DC Current : 520mA
- Length : 7.3mm
- Depth : 7.3mm
- Height : 4.5mm
- Dimensions : 7.3 x 7.3 x 4.5mm
- Shielded : Yes
- Tolerance : ±20%
- Maximum DC Resistance : 880mΩ
- Series : WE-PD
- Core Material : Ferrite
- Maximum Self Resonant Frequency : 6.3MHz
- Minimum Operating Temperature : -40°C
- CODE No.:163-3362
