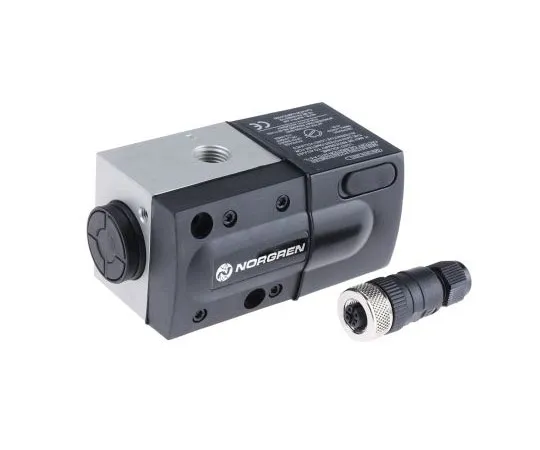

63-7510-18 Norgren 3/2 Pneumatic Control Valve Pilot/Spring G 1/4 VP50 Series VP5010BJ411H00
Product Description
Product Model: 63-7510-18Product Brand: Norgren Feature […]
Contact Us
Product Details
Product Model: 63-7510-18
Product Brand: Norgren
Features
- G 1/4 VP50 Series,Proportional Valve. Dynamic pressure control up to 10 bar with voltage or current signals Temperature range +5°C to +50°C Proportional feedback signal of output pressure Fully adjustable for a wide range of applications Fast response Flow up to 1400 litres/minute Low power consumption Complete with M12 5-pin connector Conforms to EC requirements EN50081-2 (1994) and EN50082-2 (1995) - electromagnetic compatibility Requires dry air filtered to 40μm, non-lubricated
Spec
- Quantity:1piece
- Manufacturer Series : VP50
- Mounting Style : Manifold
- Function : 3/2
- Connection Port Thread : G 1/4
- Actuation Type : Pilot/Spring
- Solenoid Fitted : Yes
- Body Material : Aluminium
- Maximum Flow Rate : 1400NL/min
- Solenoid Voltage : 24V dc
- Solenoid Power Consumption : <1W
- Minimum Operating Pressure : 2bar
- Minimum Operating Temperature : 0°C
- Maximum Operating Temperature : +50°C
- Thread Size : 1/4in
- CODE No.:366-9618
