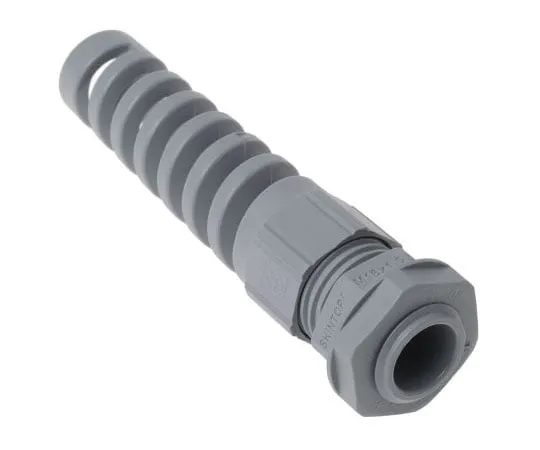

63-7509-47 Lapp Skintop M16 Cable Gland With Locknut, Polyamide, IP68 53111610+53119010
Electronic/Electrical Parts and Controll Equipments

63-7509-47 Lapp Skintop M16 Cable Gland With Locknut, Polyamide, IP68 53111610+53119010

model: 63-7509-47
brand: Lapp

Product Description

Product Model: 63-7509-47Product Brand: Lapp Features L […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 63-7509-47
Product Brand: Lapp

Features

  • Lock nut. Lapp IP68 Metric Spiral Support Gland. From Lapp, this Spiral Support Gland is an ideal way to protect cable connections. With an integrated protective spiral, the gland provides extra strain relief and b*** protection for the attached cable, meaning a higher resistance to wear and tear. With a simple screw on action that reduces assembly time, the gland is a quick and easy way to provide a high level of environmental resistance. It also has a wide clamping range, to accommodate a variety of cable sizes. Features and Benefits Integrated Spiral Support IP68 Protection Screw-On Assembly Optimum Strain Relief Chemcial Resistance Temperature Resistance Wide Clamping Range Applications Due to the dep***able b***ing and anti-kink protection inherent to this cable gland, it is ideal for *** with hand held and portable devices. Where ever a device is often moved, this spiral cable gland protects against stresses to the attached cable. Robotics Industry Light and Sound Applications Moving Machine Parts Environment The cable gland seals to IP68, which means it has a very high resistance to dust and particle ingress, and is water proof even in shallow submersion. This makes it ideal for powered devices in harsh industrial environments, and even for open air applications.

Spec

  • Quantity:1bag(5pieces)
  • Thread Size : M16
  • Material : Polyamide
  • Maximum Cable Diameter : 10mm
  • Minimum Cable Diameter : 4mm
  • Colour : Grey
  • IP Rating : IP68
  • Minimum Operating Temperature : -20°C
  • Maximum Operating Temperature : +100°C
  • Locknut Included : Yes
  • CODE No.:365-8494
