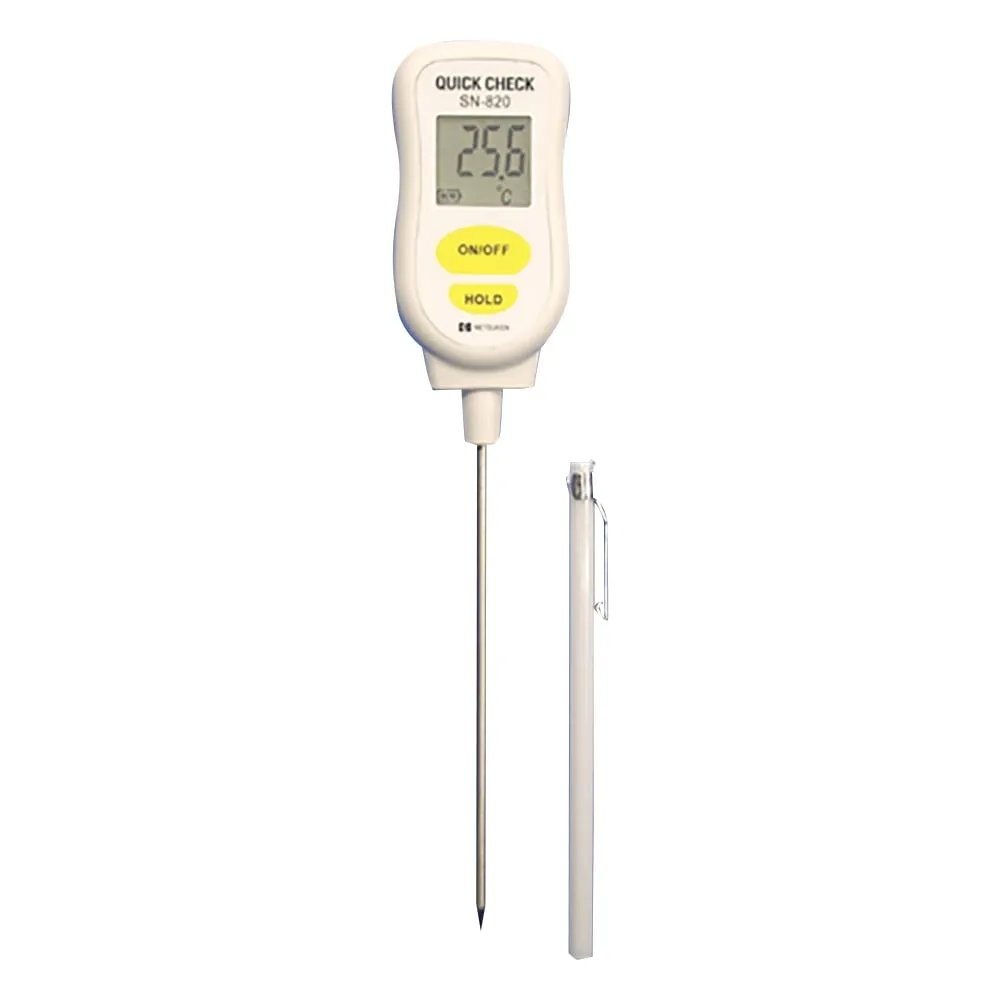

1-5005-01 Core Thermometer Quick-Check SN-820
Product Description
Product Model: 1-5005-01Product Brand: NETSUKEN Feature […]
Contact Us
Product Details
Product Model: 1-5005-01
Product Brand: NETSUKEN
Features
- Core thermometer using thermocouple as sensor.
- Has excellent impact resistance and can be ***d around water and oil.
- There is a magnet on the back to prevent it from falling.
Spec
- Model number: SN-820
- Measurement range: -50 to +350℃
- Resolution: : -9.9℃ to +199.9℃/0.1℃, Other/1℃
- Measurement accuracy: ±0.8% or ±0.8℃ of reading value, whichever is larger
- Sampling: 1 time/0.7 seconds
- With auto power OFF function
- Sensor: Thermocouple (ST: copper, constantan) φ3 x 112mm
- Material: Body/ABS resin (antibacterial), Sensor unit/stainless steel (SUS304)
- Main unit size: 43 x 20 x 90mm
- Power supply: CR2032 (3V) button cell x 1 piece (included for test)
- Weight: 50g
- Waterproof performance: Protection grade IP65
- Quick check
- RoHS3 (EU)2015/863 Certificates can be issued
