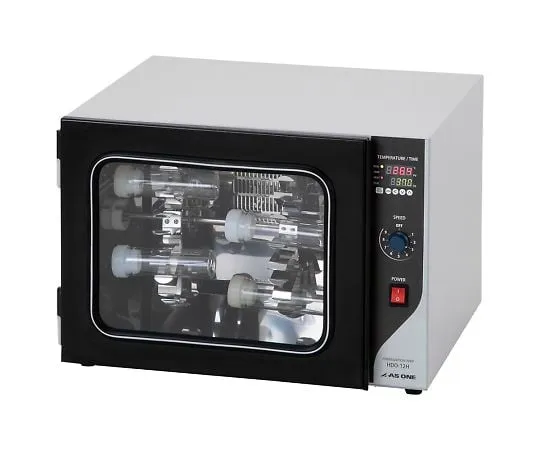

4-2563-01-28 Hybridization Oven with Pre-shipment Validation HDO-12H
Product Description
Product Model: 4-2563-01-28Product Brand: AS ONE Corpor […]
Contact Us
Product Details
Product Model: 4-2563-01-28
Product Brand: AS ONE Corporation
Features
- It is a shaking incubator that not only hybridizes, but also decolorizes gels, performs enzymatic reactions and membrane washing.
- The shaking kit is easily replaceable and requires no tools.
- Compatible with three types of agitation methods: bottle rotation, tube overturning rotation, and seesaw shaking.
- The special bottle, tube, tupperware, petri dish, etc., can be exchanged for various applications.
- Essential items for hybridization
Spec
- Validated products are Azuwan original services that conduct FAT (Factory Acceptance Test) at Azuwan before shipping.
- Validate (FAT) before shipping.
- After receiving the order, a FAT instruction form (plan) is sent to the ***r, and after the signature is returned, the FAT is performed.
- App***ix: FAT report/Calibration Certificate of ***d measuring instrument copied
- *I am attaching Azwan's original FAT instruction manual (see the sample at the bottom left of the Screen).
- Temperature point: 55 degrees Celsius, 9 points, rpm
- Body
- Temperature adjustment range: room temperature + 5 ~ 80 degrees C
- Temperature distribution accuracy (JTM K05): +/- 0.8 degrees C (at 55 degrees C)
- Temperature variation (JIS): +/- 0.25 degrees C (at 55 degrees C)
- Temperature Gradient (JIS): 2.0 degrees C (at 55 degrees C)
- Temperature Sensor: Platinum temperature resistor Pt 100 ohm
- Shaking system: Bottle rotating type, tube overturning type, seesaw shaking type
- Rotating speed: 7 ~ 40 rpm
- Convection system: Forced convection system
- Timer: 99 hours, 59 minutes (in 1 minute increments)
- Safety device: overcurrent protective f***, overrise prevention thermostat, alarm warning indication
- Temperature control method: PID control method
- External dimensions: 520 x 420 x 360 mm
- Interior dimensions: 365 x 280 x 286 mm
- Power supply: 100 VAC 50/60 Hz
- Maximum power consumption: 450 W
- Power cord length: 1.8 m (3 P plug)
- Weight: approximately 26 kg
- *If you would like to request a local IQOQ, please contact us separately. We will need your installation address for the estimate.
