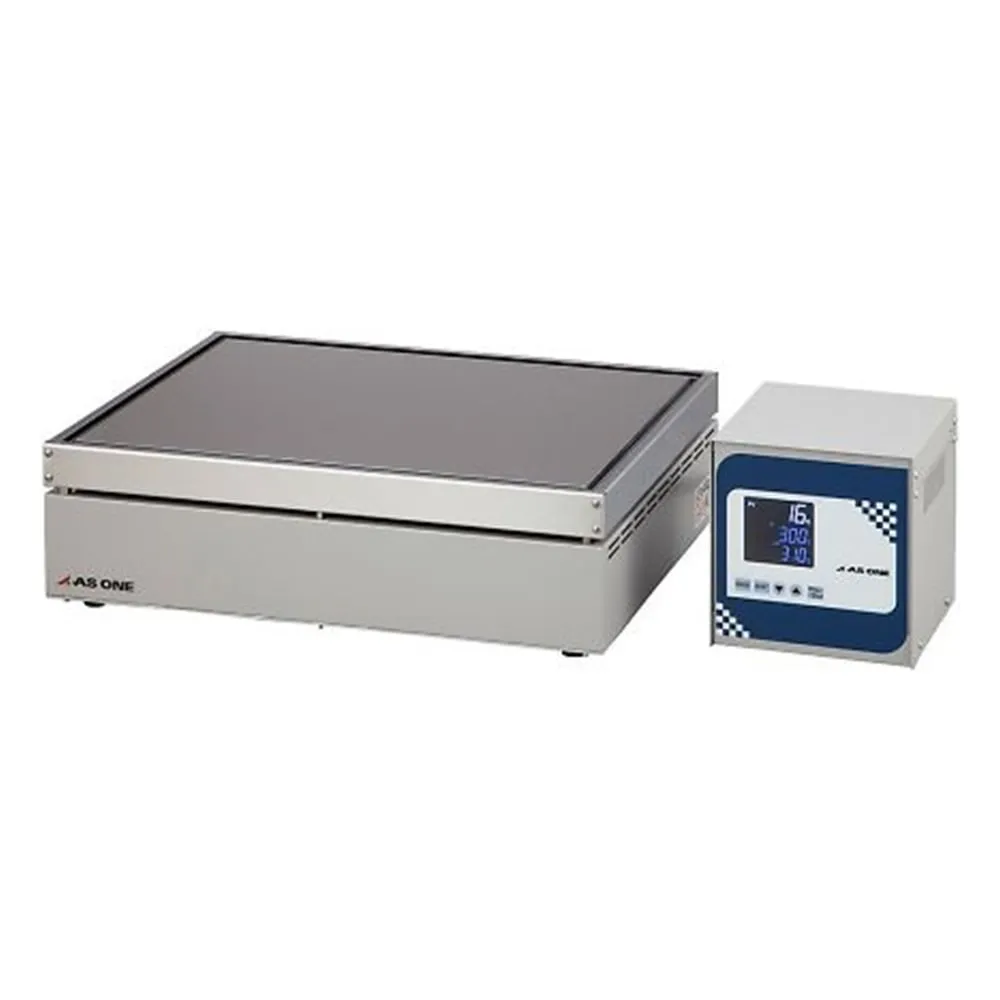

4-2546-01-22 EC Hot Plate (External Sensor Compatible) Body with Pre-Shipment Inspection Document EC-1200N2
Product Description
Product Model: 4-2546-01-22Product Brand: AS ONE Corpor […]
Contact Us
Product Details
Product Model: 4-2546-01-22
Product Brand: AS ONE Corporation
Features
- By attaching a separate sensor, it is possible to measure and control the object on the plate.
- Equipped with digital setting type excess temperature rise prevention, the excess temperature rise prevention temperature can be optionally set.
- Four timer types (ON Timer, OFF Timer, ON/OFF Timer, SV Start) are provided.
Spec
- Specifications: Body
- Maximum temperature (°C): 300
- Plate Size (mm): 412 x 312
- Temperature Control Method: PID Control
- Power: 100 VAC 50/60Hz max. 1 kW
- Power Cord: 1.8 m (3P Plug)
- Controller Size: 152 x 183 x 168 mm
- Plate Material: Aluminum
- Weight: Approx. 11 kg
- Load Capacity: Approx. 15 kg (Distributed Load to 80% Plate Area)
- Safety features: Digital setting type excess temperature rise prevention function, overcurrent f***, burnout mechanism
- Connection Terminal: M3.5 Terminal Strip
