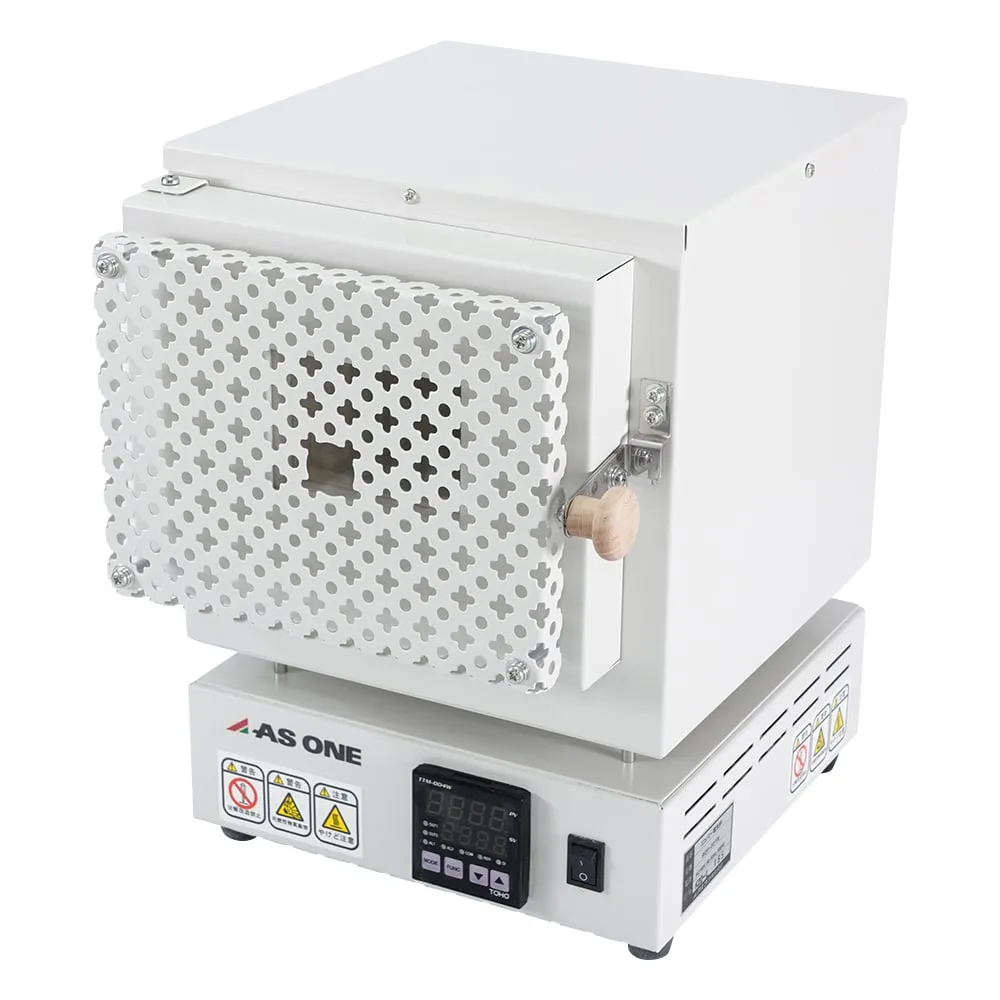

4-2154-01-28 Economy Electric Furnace with Window without Program Function with Pre-shipment Validation ROP-001W
Product Description
Product Model: 4-2154-01-28Product Brand: AS ONE Corpor […]
Contact Us
Product Details
Product Model: 4-2154-01-28
Product Brand: AS ONE Corporation
Features
- Compact personal type general purpose electric furnace that is easy to handle.
- The temperature rise time to the maximum temperature is about 30 minutes.
- You can set the temperature and check the furnace temperature with the digital display.
- The interior is easier to observe than the front glass window.
Spec
- Validated products are Azuwan original services that conduct FAT (Factory Acceptance Test) at Azuwan before shipping.
- Validate (FAT) before shipping.
- After receiving the order, a FAT instruction form (plan) is sent to the ***r, and after the signature is returned, the FAT is performed.
- App***ix: FAT report/Calibration Certificate of ***d measuring instrument copied
- *I am attaching Azwan's original FAT instruction manual (see the sample at the bottom left of the Screen).
- Temperature point: 1 point of 800 degrees Celsius
- External dimensions (mm): 210 x 260 x 290
- Furnace interior dimensions * (mm): 90 x 110 x 70
- Program functions: None
- Temperature setting range: 100 ~ 900 degrees C
- Storage capacity: 0.7 L
- Temperature control method: PID control
- Sensor: K-type thermocouple
- Temperature setting resolution: 1 °C
- Timing resolution: 1 minute
- Material: Exterior/Steel Heat resistant coating, Furnace/Ceramic fiber, Window/Heat resistant glass
- Safety mechanism: Sensor malfunction detection/over-rise prevention relay/over-current f***
- Power supply: 100 VAC 50/60 Hz
- Heater: 500 W
- Power cord length: 2 m (2P plug)
- Weight: approximately 6 kg
- *Including sensor protrusions
- *If you would like to request a local IQOQ, please contact us separately. We will need your installation address for the estimate.
