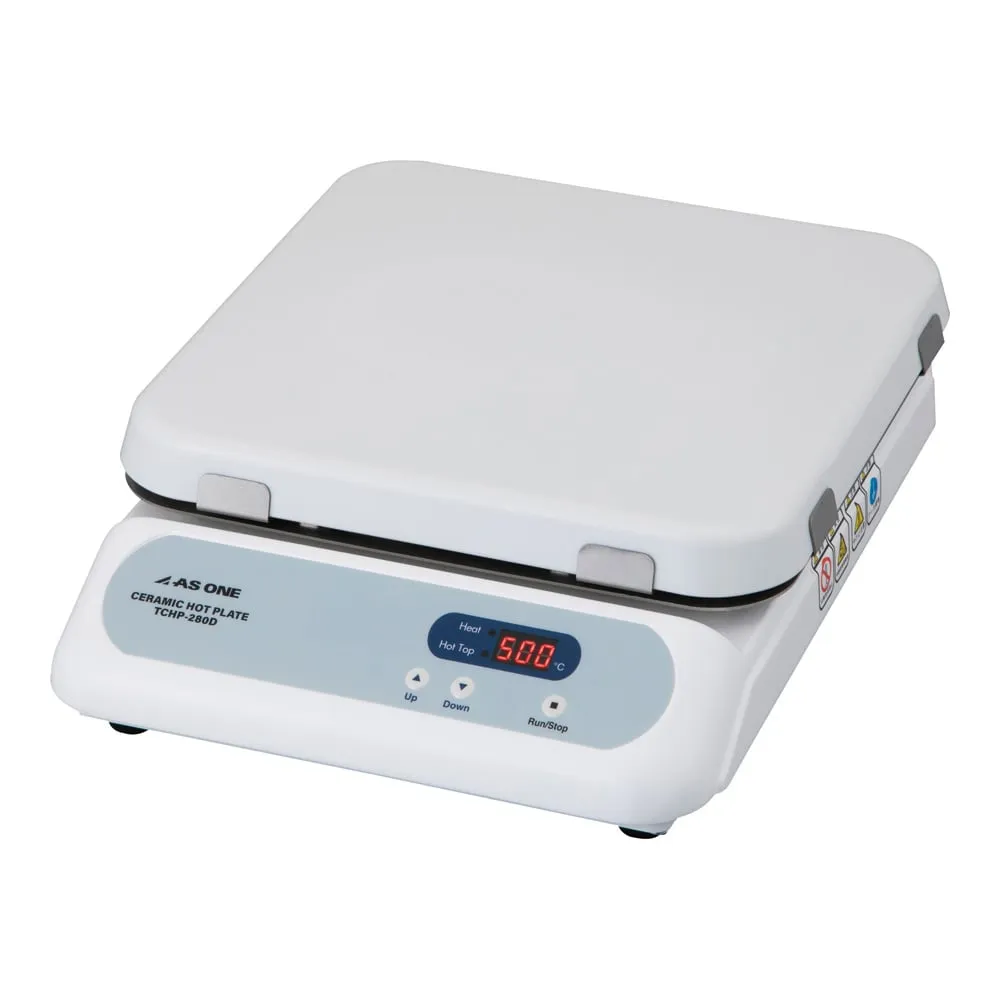

4-2088-02 Ceramic Hot Plate Digital Type 500 Degrees C TCHP-280D
Product Description
Product Model: 4-2088-02Product Brand: AS ONE Corporati […]
Contact Us
Product Details
Product Model: 4-2088-02
Product Brand: AS ONE Corporation
Features
- Frameless plate type is added to the popular ceramic hot plate lineup.
- With digital specifications, temperature can be set by button input (in 10 degree Celsius increments).
- Ceramic glass plates offer excellent heat and chemical resistance.
- It can be ***d for high-temperature heating applications up to a maximum temperature of 500℃.
- The warning lamp will light when the top is hot.
- A ceramic hot plate without a top plate frame.
Spec
- Maximum temperature (deg. C): 500
- Plate size (mm): 254 x 254
- Setting Type: Digital
- Material: Plate/Ceramic glass, Body/Aluminum die cast (heat resistant paint)
- Temperature control method: PID control with K thermocouple
- Heater capacity: 1400 W
- Operating temperature: 100 degrees Celsius to
- Safety device: Overcurrent f***, Internal temperature f***, High temperature warning display function
- Power supply: 100 VAC 50/60 Hz 3 P plug
- Body size: 372 x 300 x 109 mm
- Body weight: About 5.7 kg
