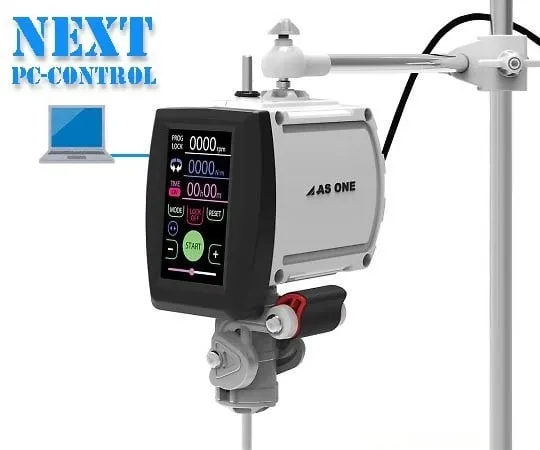

4-2087-24 Tornado N (Stand Set) PC Control 50~3000rpm PSTC-101XST600C
Product Description
Product Model: 4-2087-24Product Brand: AS ONE Corporati […]
Contact Us
Product Details
Product Model: 4-2087-24
Product Brand: AS ONE Corporation
Features
- Equipped with a newly designed dedicated DC brushless motor, it achieves compact size, high output, low cocking, low vibration and low noise.
- Excellent rotation accuracy, low eccentricity and high torque.
- Select from 3 rotation speed ranges.
- Belt drive makes it suitable for long operation.
- The thermal protector operates to protect the product from overloading or overheating of the motor during ext***ed operation.
- The feedback system constantly responds to changes in load during stirring and maintains the set rotational speed.
- The stirring bar can be loosened by lowering the lever type chuck, and the stirring bar height can be changed smoothly (no separate parts required).
- Pressure-sensitive touch panel with rich functions.
- Bar type rotation speed setting allows analog operation.
- Normal rotation/rotation/torque/timer/mode is displayed.
- It is possible to link with the control application, and log recording and program setting can be controlled from a Windows®PC (via USB).
- Next-generation model of high-torque agitator
- Also lineup of PC control types
Spec
- Control Type
- Speed (rpm): 50~3000
- Maximum torque (N/m): 0.173
- Control software: Yes
- Rotation control: Brushless motor feedback control
- Motor: DC Brushless Motor 50 W (Class B Insulation)
- Safety functions: thermal protector, current limiting circuit, chuck lever interlocking fail-safe function
- Functions: Forward/reverse switching function, ON/OFF timer function Program, log acquisition (Supported OS: Windows®8/8.1/10/11 (32, 64bit))
- Chuck: Lever Type Chuck
- Power Supply: Dedicated AC Adapter (100 ~240 VAC ⇒ 24 VDC, 5 A) Approximately 1.5 m for both AC⇔ Adapter ⇔DC
- Power consumption: 100 W
- Size (body): 136 x 175 x 242 mm
- Material: ABS Resin/Aluminum/SUS304, Other
- Weight (Body): Approx. 3kg
- Accessories: Propeller Type Stirring Blade (60 mm), Stirring Blade Fixing Nut, Stirring Rod (φ8 x 500 mm), Arm Holder, Arm Bar, Stand (ST600 C)
- *The shaft diameter that can be ***d is Φ8mm only. Chuck collet (Aswan part number: 1-5507-02, 1-5507-03) for Tornado series cannot be ***d for Tornado N series.
- < a href="https://axel.as-1.co.jp/images/pdf/pb/4-2087/PSTC_Controller_v102.zip" rel="noopener nofollow" target="_blank" > Download PSTC-Controller (v102) from here < /a >
- Windows®8/8.1/10/11 (32, 64bit)
