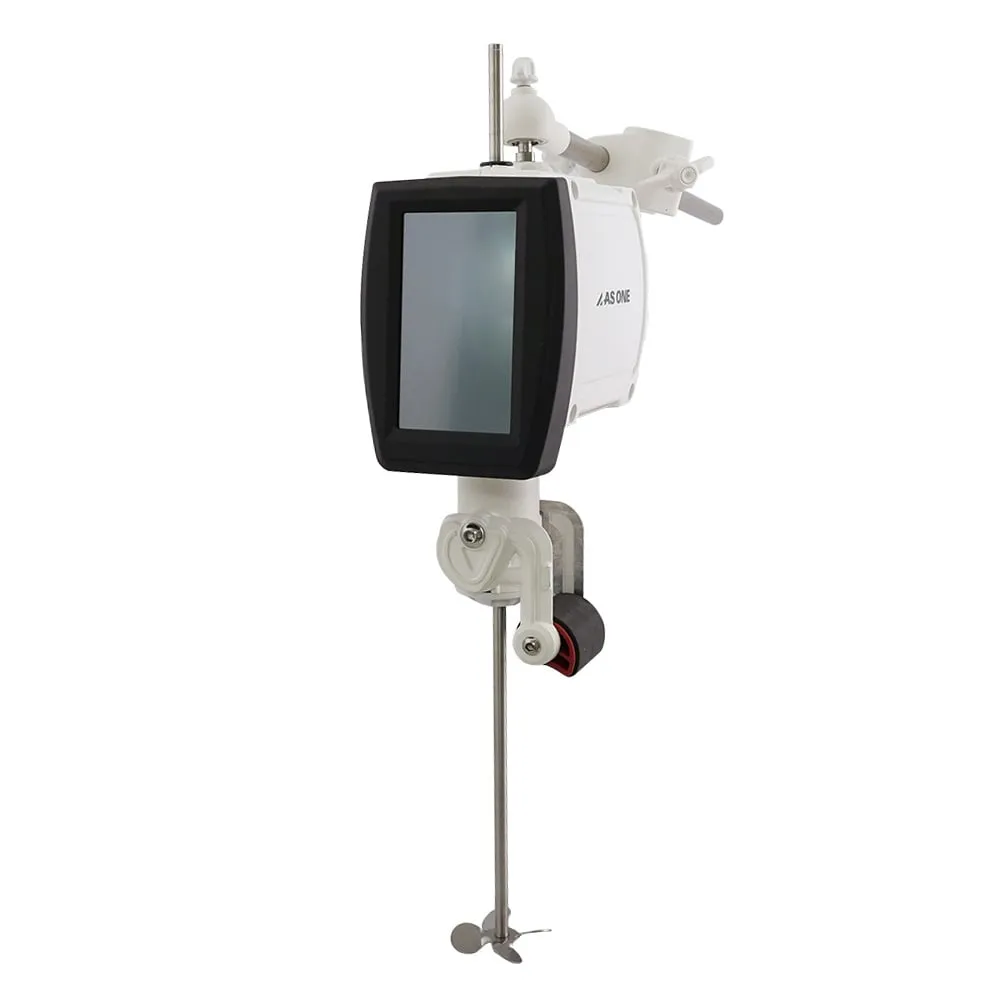

4-2087-04-22 Tornado N (NEXT) PC Control 50 ~ 3000 rpm with Pre-shipment Inspection Certificate PSTC-101
Product Description
Product Model: 4-2087-04-22Product Brand: AS ONE Corpor […]
Contact Us
Product Details
Product Model: 4-2087-04-22
Product Brand: AS ONE Corporation
Features
- Equipped with a newly designed exclusive DC brushless motor, it achieves compact high power, low coking, low vibration and low noise.
- Excellent rotation accuracy, low eccentricity and high torque.
- Select from three rotation speed ranges.
- The belt drive is suitable for long hours of operation.
- The thermal protector works to protect the product body against motor heat during overloading or long operation.
- The feedback system constantly responds to changes in load during stirring and maintains the set speed.
- The stirring bar can be loosened by lowering the lever type chuck, and the stirring bar height can be changed smoothly (no need for separate parts).
- Pressure-sensitive touch panel with rich functions.
- Bar type rotation speed setting allows analog operation.
- Normal rotation reverse/revolution/torque/timer/mode is displayed.
- It can be linked with a control app, and can be controlled from a Windows ® PC (via USB), including logging and program settings.
- Next generation model of high torque agitator ・ PC control type also available
Spec
- Control Type
- Speed (rpm): 50 ~ 3000
- Maximum torque (N/m): 0.173
- Control software: Yes
- Rotation control: Feedback control with brushless motor
- Motor: DC Brushless Motor 50 W (Type B Insulation)
- Safety functions: Thermal protector, current limiting circuit, chuck lever interlocking fail-safe function
- Functions: Forward/reverse switching, ON/OFF Timer function Program/Log acquisition (OS: Windows ® 8/8. 1/10/11 (32, 64 bit))
- Chuck: Lever type chuck
- Power supply: Dedicated AC adapter (100 ~ 240 VAC = > 24 VDC 5 A) Approx. 1.5 m for both AC to D and AC to D adapter to D.
- Power consumption: 100 W
- Size (body): 136 x 175 x 242 mm
- Material: ABS resin/aluminum/SUS 304, others
- Weight (body): approx. 3kg
- Accessories: Propeller type stirring blade (60 mm), stirring blade fixing nut, stirring bar (Φ8 x 500 mm), arm holder, arm bar
- *A stand is not included.
- < a href="https://axel.as-1.co.jp/images/pdf/pb/4-2087/PSTC_Controller_v102.zip" rel="noopener nofollow" target="_blank" > Download the dedicated software PSTC-Controller (v 102) here < /a >
- Operating System: Windows ® 8/8. 1/10/11 (32/64 bit)
- Inspection contents App***ix: Inspection inspection documents
- Actual speed, Timer operation, forward/reverse switching (display accuracy +/- 5%)
- *It is not possible to check the torque.
- App***ix: Inspection Certificate documents
- *Products with Inspection Certificate are Azwan's original service that includes inspection of control and electric engine personnel and issuance of inspection documents at the time of shipment.
