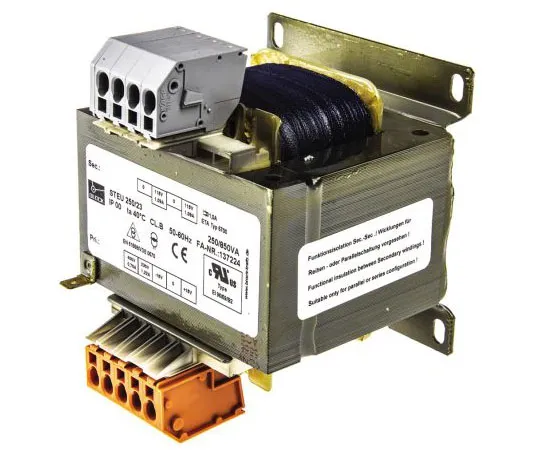

63-7506-33 Block 250VA Isolating Transformer, 215V ac, 230V ac, 245V ac, 385V ac, 400V ac, 415V ac Primary 2 x, 115V ac Secondary STEU250/23
Product Description
Product Model: 63-7506-33Product Brand: Block Features […]
Contact Us
Product Details
Product Model: 63-7506-33
Product Brand: Block
Features
- EN 61558, VDE0570. UL Recognised Component for Canada ; US. Safety Isolating Transformer. Safety isolating and isolating control transformers Twin secondary winding for series or parallel connection 63,100,160 and 250VA transformers can be mounted on standard 35mm DIN rail All units have 4 hole panel mount fixings Easy installation 4mm² cage clamp terminals Insulation catagory Class B. Primary connections 0V, -15V, +15V, 230V, 400V. The + 15 and -15V allows you to offset the primary Voltage by 15V Low inrush current High efficiency, low regulation
Spec
- Quantity:1piece
- Secondary Voltage Rating : 115V ac
- Power Rating : 250VA
- Mounting Type : DIN Rail, Panel
- Number of Outputs : 2
- Length : 96mm
- Width : 102mm
- Depth : 104mm
- Dimensions : 96 x 102 x 104mm
- Minimum Operating Frequency : 50Hz
- Maximum Operating Frequency : 60Hz
- Maximum Temperature : +40°C
- Weight : 3.6kg
- CODE No.:361-8092
