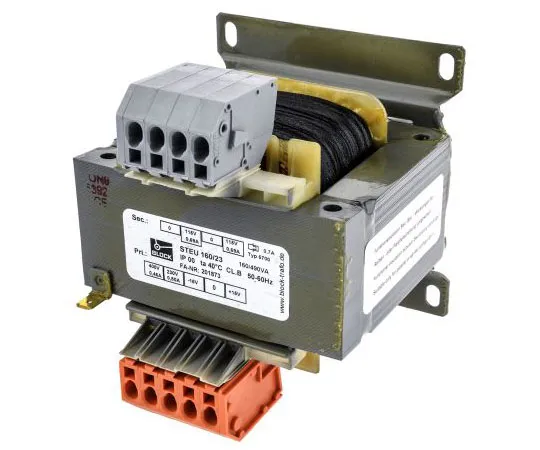

63-7506-32　Block 160VA Isolating Transformer, 215V ac, 230V ac, 245V ac, 385V ac, 400V ac, 415V ac Primary 2 x, 115V ac Secondary　STEU160/23
Electronic/Electrical Parts and Controll Equipments

63-7506-32　Block 160VA Isolating Transformer, 215V ac, 230V ac, 245V ac, 385V ac, 400V ac, 415V ac Primary 2 x, 115V ac Secondary　STEU160/23

model: 63-7506-32
brand: Block
category: Electronic/Electrical Parts and Controll Equipments

Product Description

Product Model: 63-7506-32Product Brand: Block Features […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code
Online Consultation

Product Details

Product Model: 63-7506-32
Product Brand: Block

Features

  • EN 61558, VDE0570. UL Recognised Component for Canada ; US. Safety Isolating Transformer. Safety isolating and isolating control transformers Twin secondary winding for series or parallel connection 63,100,160 and 250VA transformers can be mounted on standard 35mm DIN rail All units have 4 hole panel mount fixings Easy installation 4mm² cage clamp terminals Insulation catagory Class B. Primary connections 0V, -15V, +15V, 230V, 400V. The + 15 and -15V allows you to offset the primary Voltage by 15V Low inrush current High efficiency, low regulation

Spec

  • Quantity:1piece
  • Secondary Voltage Rating : 115V ac
  • Power Rating : 160VA
  • Mounting Type : DIN Rail, Panel
  • Number of Outputs : 2
  • Length : 96mm
  • Width : 102mm
  • Depth : 104mm
  • Dimensions : 96 x 102 x 104mm
  • Minimum Operating Frequency : 50Hz
  • Maximum Operating Frequency : 60Hz
  • Maximum Temperature : +40°C
  • Weight : 2.9kg
  • CODE No.:361-8086
