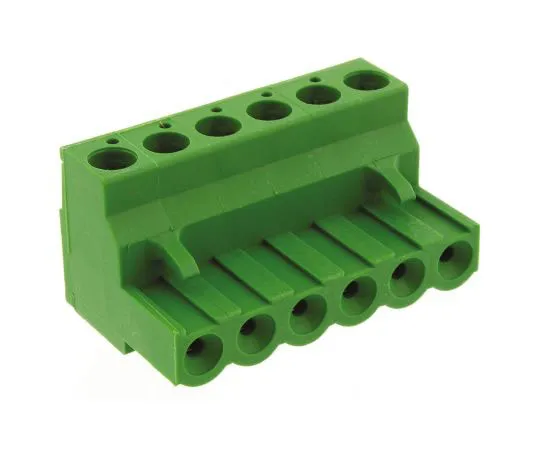

63-7506-05 TE Connectivity Non-F***d Terminal Block, 6 Way/Pole, Screw Down Terminals, 30 → 12 AWG Cable Mount, Nylon, 300 796634-6
model:
63-7506-05
brand:
TE Connectivity
Product Description
Product Model: 63-7506-05Product Brand: TE Connectivity […]
Contact Us
Product Details
Product Model: 63-7506-05
Product Brand: TE Connectivity
Features
- UL no E 60677,CSA File no 007189A. TE Connectivity 5.08mm TERMI-BLOK™ Right Angle Mount Terminal Block Plug Connectors. 5.08mm centre line TERMI-BLOK ™ PCB terminal block plug connectors with M3 screw terminals. These TERMI-BLOK plug connectors are right angle mounting and side stackable and accept a wire size range of 30 to 12 AWG. Part numbers x-796634-x are made from green polyamide 6.6 GF Part numbers x-796635-x are made from black polyamide 6.6 GF For mating terminal block connectors see stock number ; 710-0110 710-0110 typically. Rising clamp design to side entry terminals Terminal supplied with open screw to save assembly time Can be ***d in corrosive environments
Spec
- Quantity:1box(100pieces)
- Number of Ways : 6
- Mounting Type : Cable Mount
- Pitch : 5.08mm
- Current Rating : 15A
- Termination Method : Screw Down
- Wire Size : 30 → 12 AWG
- Material : Nylon
- Voltage Rating : 300 V ac
- Contact Material : Phosphor Bronze
- Contact Plating : Tin
- CODE No.:164-8680
