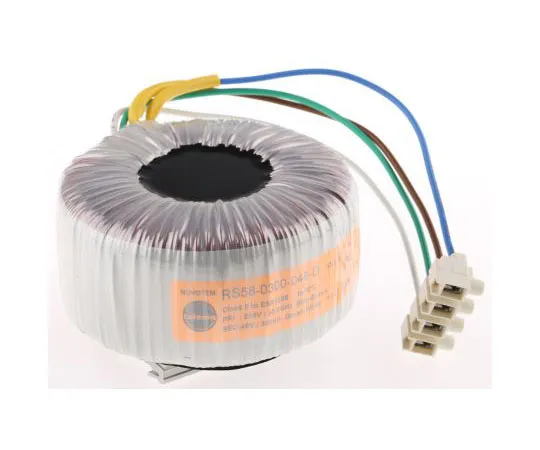

63-7505-85 1 Output Toroidal Transformer, 300VA, 48V ac 58-0300-048-D
model:
63-7505-85
brand:
Nuvotem Talema
Product Description
Product Model: 63-7505-85Product Brand: Nuvotem Talema […]
Contact Us
Product Details
Product Model: 63-7505-85
Product Brand: Nuvotem Talema
Features
- Toroidal Transformers DIN Rail Mounting. This series of toroidal transformers from Nuvotem Talema offer a compact solution with relatively low weight in comparison to traditional lamination types. Offering very low induced noise and a low radiated magnetic field, these toroidal transformers are manufactured to very high quality. Suitable for *** with 35mm DIN rail and snaps on easily 200mm (approx.) flying leads Flying leads fitted with connector block Double insulated primary lead outs Low induced noise (hum) High quality manufacturing and testing in accordance to EN60742, EN60065, VDE0551, VDE0550 and BS415
Spec
- Quantity:1piece
- Primary Voltage Rating : 230V ac
- Secondary Voltage Rating : 48V ac
- Power Rating : 300VA
- Number of Outputs : 1
- Secondary Current : 6.25A
- Height : 69mm
- Weight : 2.5kg
- Diameter : 117mm
- Dimensions : 117 (Dia.) x 69mm
- Mounting Type : DIN Rail
- CODE No.:361-6349
