Electronic/Electrical Parts and Controll Equipments

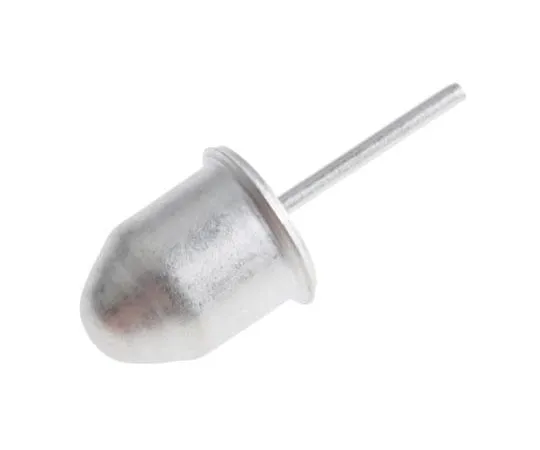

63-7505-76 60 °, 250 mA, 60V, Tilt Switch OXL/CLH/63/FL30/YW
Product Description
Product Model: 63-7505-76Product Brand: Assemtech Featu […]
Contact Us
Product Details
Product Model: 63-7505-76
Product Brand: Assemtech
Features
- Tip-over Switches - Ho***d ; 1 Pin. Hermetically sealed steel tin plated switch, available with or without a polypropylene housing Gold plated contacts Ho***d type is rated to IP65 and is prewired with 150mm of 2 core PVC cable
Spec
- Quantity:1piece
- Differential Angle : 60 °
- Mounting Orientation : Vertical
- Maximum Current : 250 mA
- Maximum AC Voltage : 60V
- Contact Resistance : 5mΩ
- Terminal Type : PCB
- Length : 16.25mm
- Minimum Operating Temperature : -38°C
- Maximum Operating Temperature : +100°C
- Dimensions : 5.7 x 16.25 mm
- CODE No.:361-5194
