Electronic/Electrical Parts and Controll Equipments

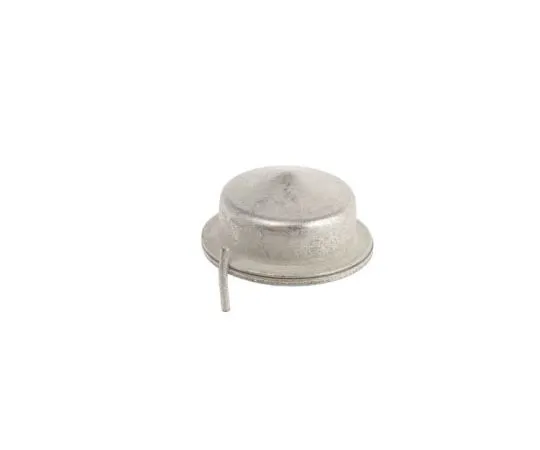

63-7505-72 25 °, 250 mA, 60V, Tilt Switch CW1725-1
Product Description
Product Model: 63-7505-72Product Brand: Assemtech Featu […]
Contact Us
Product Details
Product Model: 63-7505-72
Product Brand: Assemtech
Features
- Tip-over Switch - 2 Pin. Hermetically sealed metal, tin plated housing Gold plated contacts Dimensions: Length 11mm (inc. pins) Body Dia. 15mm
Spec
- Quantity:1piece
- Differential Angle : 25 °
- Mounting Orientation : Horizontal
- Maximum Current : 250 mA
- Maximum AC Voltage : 60V
- Maximum DC Voltage : 60V
- Contact Resistance : 30Ω
- Terminal Type : PCB
- Length : 11mm
- Minimum Operating Temperature : -37°C
- Maximum Operating Temperature : +100°C
- Dimensions : 15.4 x 11 mm
- CODE No.:361-5122
