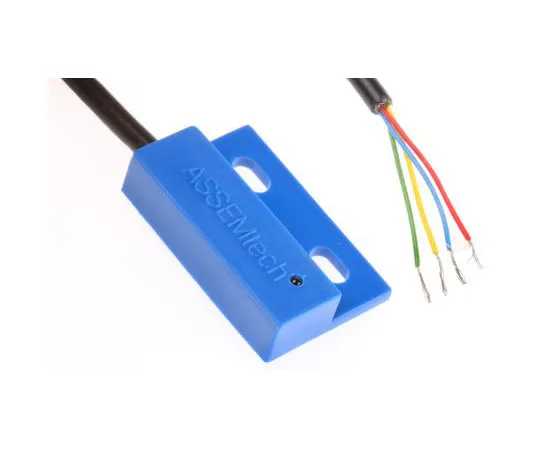

63-7505-69 Assemtech Reed Switch Rectangular, NO, 25 mA S1431
Product Description
Product Model: 63-7505-69Product Brand: Assemtech Featu […]
Contact Us
Product Details
Product Model: 63-7505-69
Product Brand: Assemtech
Features
- For suitable magnet see Stock No. ; 361-5009 361-5009. Solid State, Dual O/P, Magnetically Activated. Prewired in a flame retardant Crastine (GFFR) housing N/O collector output PNP or NPN output Bounce free switching up to 10kHz Sealed to IP67 Cable length 130mm Dimensions 30 x 20 x 7 mm
Spec
- Quantity:1piece
- Switch Shape : Rectangular
- Switch Type : Magnetic Proximity
- Normal State Configuration : NO
- Terminal Type : Wire Lead
- Maximum Current : 25 mA
- Maximum DC Voltage : 20V
- Total Length : 330mm
- Length : 30mm
- Width : 20mm
- CODE No.:361-4999
