Electronic/Electrical Parts and Controll Equipments

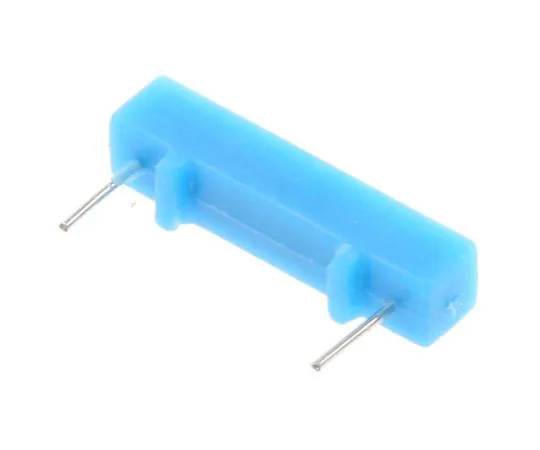

63-7505-68 Assemtech Reed Switch Rectangular 70V, NO, 250 mA S1391
Product Description
Product Model: 63-7505-68Product Brand: Assemtech Featu […]
Contact Us
Product Details
Product Model: 63-7505-68
Product Brand: Assemtech
Features
- Fully Encapsulated. Contact Form A - Normally open 24Vac and 70Vac version available Operating temperature range: -20 to +70°C (24V); -25 to +70°C (70V) Pin pitch 12mm Contact resistance 200mΩ (24V); 150mΩ (70V)
Spec
- Quantity:1piece
- Switch Shape : Rectangular
- Normal State Configuration : NO
- Maximum Current : 250 mA
- Maximum AC Voltage : 70V
- Contact Resistance : 200mΩ
- Total Length : 15mm
- Length : 15mm
- Width : 4.2mm
- CODE No.:361-4983
