Electronic/Electrical Parts and Controll Equipments

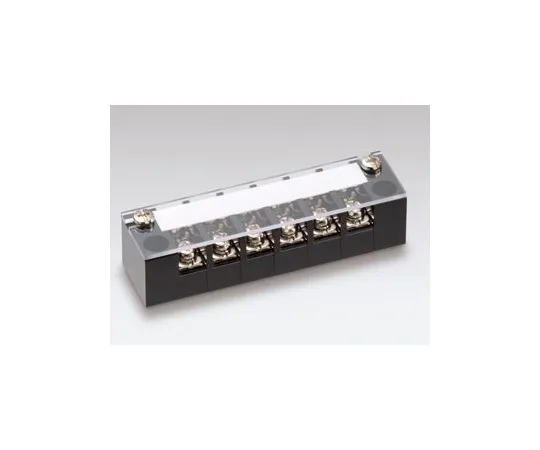

63-3154-26 Screw Terminal Block for 2-row Relay 4 poles 300 V -15 A ML-1-4P
model:
63-3154-26
brand:
SATO PARTS CO., LTD.
Product Description
Product Model: 63-3154-26Product Brand: SATO PARTS CO., […]
Contact Us
Product Details
Product Model: 63-3154-26
Product Brand: SATO PARTS CO., LTD.
Spec
- Package
- Column 2
- Number of Poles 4
- Pitch between terminals 10 mm
- Specifications 2
- Rated 300 V -15 A (T & # 220; V Standard 250 V -15 A)
- Withstand voltage: 2000 V AC (1 minute)
- Insulation resistance DC 500 V, 100 Momega or more
- Main insulation material body: phenol (UL 94 V-0)
- Cover: Polycarbonate (UL 94 V-0), sheet thickness 2 P-5 P: t = 1.0/6 P- 18 P: t = 1.5
- Terminal screw square washer screw (M 3.5 x 8), terminal screw tightening torque 0.8 N/m MAX
- Acquisition Standard UL Standard/T & # 220; V Standard (complies with IEC 60947 -7 -1)
- Body Color Black
- Mounting system screw fastening
