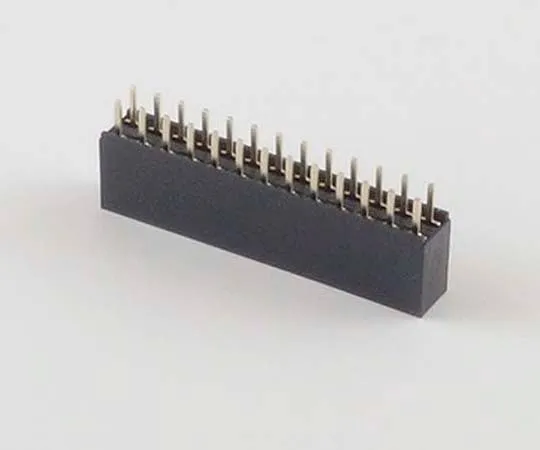

63-3153-46 Pin Socket for 26 Pin Board (13 Pin x 2 rows) 21602X13GSE
Electronic/Electrical Parts and Controll Equipments

63-3153-46 Pin Socket for 26 Pin Board (13 Pin x 2 rows) 21602X13GSE

model: 63-3153-46
brand: Linkman

Product Description

Product Model: 63-3153-46Product Brand: Linkman Spec Co […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 63-3153-46
Product Brand: Linkman

Spec

  • Connector shape: straight
  • Number of columns: 2
  • Number of pins: 26 (2 x 13)
  • Socket Height: 8.42 mm
  • Pitch: 2.54 mm
  • Contact Resistance: 30 m.OMEGA. Max (100 mA DC)
  • Insulation resistance: 1000 m.OMEGA. Min (500 VDC)
  • Current rating: 1A
  • Withstand voltage: 500 VAC (1 min)
  • Temperature rating: -55 degrees C to + 105 degrees C
  • Contact Material: Phosphorus Bronze
