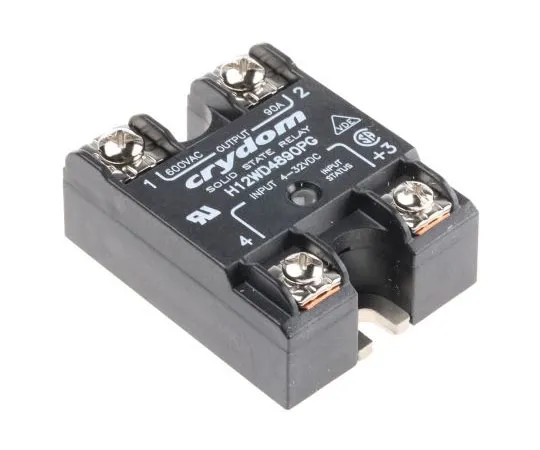

63-7503-53 Sensata / Crydom 90 A Solid State Relay, Zero Cross, Panel Mount, SCR, 660 V ac Maximum Load H12WD4890PG
model:
63-7503-53
brand:
Sensata / Crydom
Product Description
Product Model: 63-7503-53Product Brand: Sensata / Crydo […]
Contact Us
Product Details
Product Model: 63-7503-53
Product Brand: Sensata / Crydom
Features
- UL Recognised; C-UL Recognised; VDE (including Protection). Derating will limit the maximum load current at temperatures above 25 °C. Heat sink not included. For load current de-rating and heat sink details see manufacturers datasheet. SSRs with Built In Overvoltage Protection AC Switching 10A to 125A. Overvoltage and transient protection Zero Voltage Switching Solid State reliability Status indicating LED Microprocessor compatible input Terminal Type Screw; Saddle Clamp Operating Temperature Range -40 to +80°C Dimensions: H22.9 x W45.7 x D58.4 Input to output Capacitance: 8pF
Spec
- Quantity:1piece
- Minimum Load Current : 150 mA
- Maximum Load Current : 90 A
- Mounting Type : Panel Mount
- Minimum Load Voltage : 48 V ac
- Maximum Load Voltage : 660 V ac
- Minimum Control Voltage : 4 V dc
- Maximum Control Voltage : 32 V
- Switching Type : Zero Cross
- Terminal Type : Screw
- Output Device : SCR
- Maximum Turn On Time : 1/2 cycle
- Dimensions : 45.7 x 45.7 x 23mm
- Minimum Operating Temperature : -40°C
- CODE No.:358-3053
