63-3151-87 Wrapping Terminal Connection Type WL Series (10 pieces) WL-1
Electronic/Electrical Parts and Controll Equipments

63-3151-87 Wrapping Terminal Connection Type WL Series (10 pieces) WL-1

model: 63-3151-87
brand: MAC EIGHT CO., LTD

Product Description

Product Model: 63-3151-87Product Brand: MAC EIGHT CO., […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 63-3151-87
Product Brand: MAC EIGHT CO., LTD

Features

  • Material: Pin Portion: Phosphorus Bronze Resin Portion: PBT Black (UL94V-0) Treatment: Pin Portion Nickel Underlay Gold Plating Print Plate Mounting Hole Diameter: 1.0~1.1φ
  • Rated Current: 3 A
  • Rated Voltage: 250 V AC. DC
  • Insulating Resistance: 500 MΩ or More
  • Voltage: 1000 V AC. DC1 Minute
  • Operating Temperature Range: -40°C to +125°C
  • Number of Pieces: 10

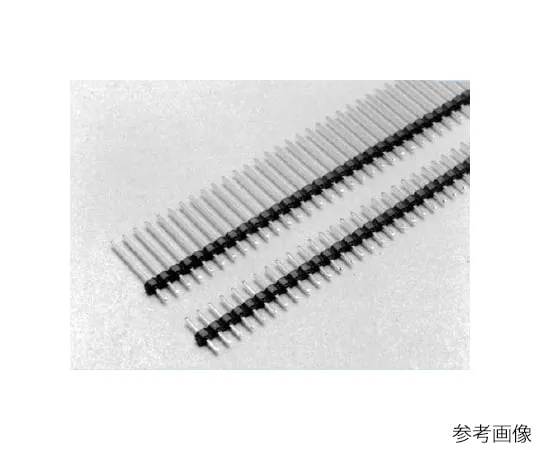

  • These are 2.54 mm pitch connected type wrapping terminals. ・Switch can be switched in combination with a jump socket (part number JS-1). In this case, the height from the printed circuit board surface is 6 mm. (Combination of WL-1 and JS -1) ・34 pins are connected, so please cut it to the desired number of poles with a mold cutting nipper (part number MOC-3) and *** it.
