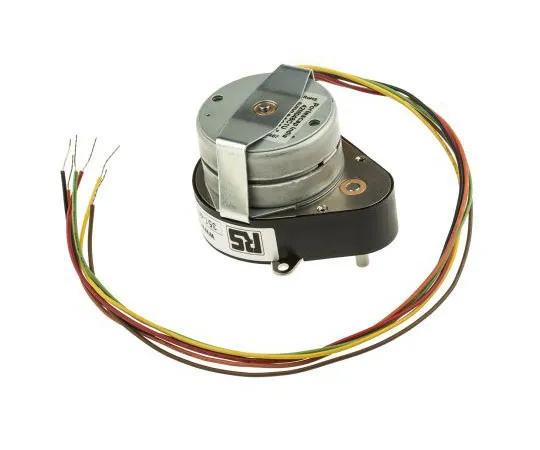

63-7502-66 McLennan Servo Supplies Unipolar Permanent Magnet Stepper Motor 7.5°, 1.0Nm, 5 V dc, 550 mA, 6 Wires P542-M481U-G11L82
model:
63-7502-66
brand:
McLennan Servo Supplies
Product Description
Product Model: 63-7502-66Product Brand: McLennan Servo […]
Contact Us
Product Details
Product Model: 63-7502-66
Product Brand: McLennan Servo Supplies
Features
- 7.5° Unipolar Geared, Stepper Motor. A permanent magnet 5V stepper motor fitted with an ovoid gearhead, which provides a rotational speed reduction and increased torque output.. Ideal for applications where digital control of speed and position is required Gearbox utilises metal gears for optimum torque transmission
Spec
- Quantity:1piece
- Step Angle : 7.5°
- Holding Torque : 1.0Nm
- Number Of Wires : 6
- Voltage Rating : 5 V dc
- Stepper Motor Type : Permanent Magnet
- Shaft Diameter : 4mm
- Current Rating : 550 mA
- Winding Arrangement : Unipolar
- Shaft Length : 17.2mm
- Depth : 25mm
- Number of Pole Pairs : 2
- Resistance Per Phase : 9.1Ω
- CODE No.:351-4625
