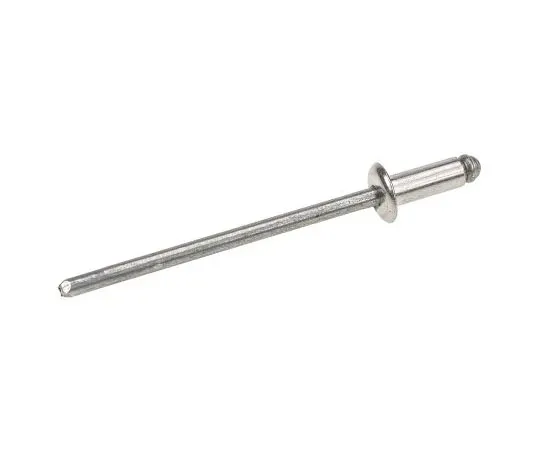

63-7502-29 8mm Plain Aluminium Alloy Blind Rivet, 3.2mm diameter, 3.2 → 4.8 mm Thickness TAPD46BS
Product Description
Product Model: 63-7502-29Product Brand: POP Features Do […]
Contact Us
Product Details
Product Model: 63-7502-29
Product Brand: POP
Features
- Domed Head POP® Rivets. Aluminium POP® Rivets. Standard open type domed head rivet, for general purpose *** Aluminium alloy (3·5% magnesium) body, carbon steel mandrel. Steel POP® Rivets. Standard open type domed head steel rivet Increased strength and temperature resistance Carbon steel body and mandrel. Premium Quality Steel POP® Rivets. Mandrel head retention Excellent hole fill capabilities Large blind side bearing area High shear and tensile values to standard steel products Carbon steel body and mandrel. Stainless Steel POP® Rivets. Standard open type domed head stainles steel rivet Increased strength and temperature resistance Good corrosion resistance Stainless steel body and mandrel
Spec
- Quantity:1bag(100pieces)
- Rivet Type : Blind
- Rivet Diameter : 3.2mm
- Rivet Length : 8mm
- Fixing Hole Diameter : 3.4mm
- Rivet Body Material : Aluminium Alloy
- Mandrel Material : Carbon Steel
- Thickness of Material Minimum : 3.2mm
- Thickness of Material Maximum : 4.8mm
- Finish : Plain
- CODE No.:351-3212
