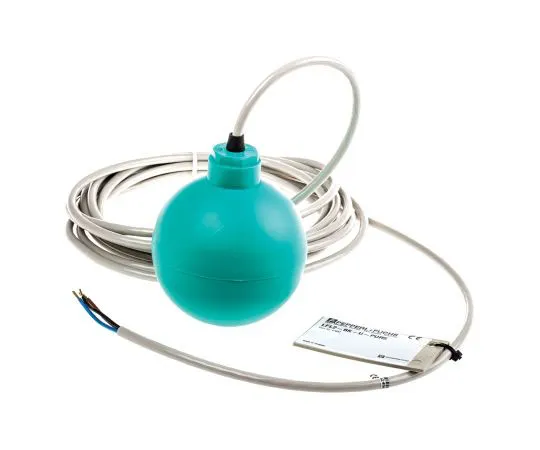

63-7502-21 PUR cable ball float switch,250V LFL2-BK-U-PUR5
model:
63-7502-21
brand:
Pepperl + Fuchs
Product Description
Product Model: 63-7502-21Product Brand: Pepperl + Fuchs […]
Contact Us
Product Details
Product Model: 63-7502-21
Product Brand: Pepperl + Fuchs
Features
- FFS Float Switches – Ball Type. Float Switches from Pepperl + Fuchs. Designed with a highly buoyant ball and to be ***d with any sequential circuit, beca*** of the buoyancy it is ideally suited to low density liquids. The switch element is mercury free. The float switch is small in diameter, allowing ***rs to fit into tap holes as small as G1. Switching is started by the rocking motion of the sensor. Ball type for high buoyancy Mercury free micro switch with switching ball Density: ≥0.6g/cm ;sup>3 ;/sup> Polypropylene float Cable: 5m, 3 x 0.75mm ;sup>2 ;/sup>Dimensions: 86mm diameter
Spec
- Quantity:1piece
- Device Type : Float
- Mounting Type : Horizontal
- Switch Output : Direct Load
- Body Material : Polypropylene
- Cable Length : 5m
- Minimum Operating Temperature : -20°C
- Maximum Operating Temperature : +85°C
- Maximum Current : 1 A dc, 3 A ac
- Maximum Pressure : 2bar
- CODE No.:350-2082
