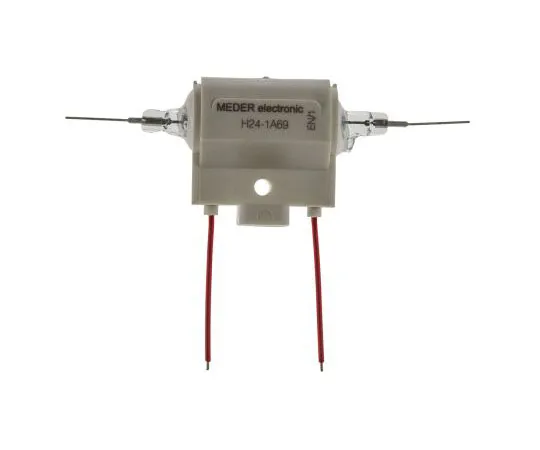

63-7502-07 SPNO Reed Relay, 3 A, 24V dc H24-1A69
Product Description
Product Model: 63-7502-07Product Brand: Meder Features […]
Contact Us
Product Details
Product Model: 63-7502-07
Product Brand: Meder
Features
- SPNO H Series. Coil covered with a thermoplastic casing according to UL 94V-0 M4 screw fastening option High insulation resistance Maximum continuous current: 5A Vibration resistance: 20g at 50 - 500 Hz Operating temperature: -20°C to +70°C Maximum switching current: 3A Maximum switching power: 50W
Spec
- Quantity:1piece
- Contact Configuration : SPNO
- Coil Voltage : 24V dc
- Mounting Type : Panel Mount
- Maximum Switching Voltage AC : 10000V ac
- Maximum Switching Voltage DC : 10000V dc
- Coil Power : 380mW
- Coil Resistance : 1.5 kΩ
- Length : 54mm
- Height : 30mm
- Depth : 18mm
- Dimensions : 54 x 18 x 30mm
- Isolation Coil To Contact : 15kV ac
- Minimum Operating Temperature : -20°C
- CODE No.:349-1847
