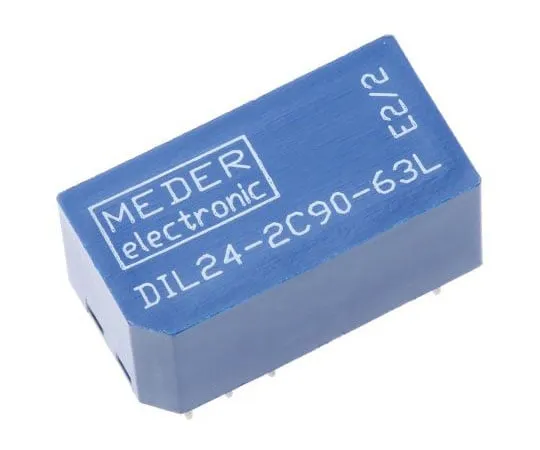

63-7502-03 DPDT Reed Relay, 250 mA, 24V dc DIL24-2C90-63L
Product Description
Product Model: 63-7502-03Product Brand: Meder Features […]
Contact Us
Product Details
Product Model: 63-7502-03
Product Brand: Meder
Features
- DPCO DIL Relay. Compatible with DIL socket Sealed with PU resin Contact Material Rh Operating temperature -20 to +70°C
Spec
- Quantity:1piece
- Contact Configuration : DPDT
- Coil Voltage : 24V dc
- Mounting Type : PCB Mount
- Maximum Switching Voltage AC : 175V ac
- Maximum Switching Voltage DC : 175V dc
- Coil Power : 290mW
- Coil Resistance : 2 kΩ
- Length : 20.1mm
- Height : 10.2mm
- Depth : 10.2mm
- Dimensions : 20.1 x 10.2 x 10.2mm
- Isolation Coil To Contact : 3 kV ac, 4.5 kV dc
- Number of Poles : 2
- CODE No.:349-1780
