Electronic/Electrical Parts and Controll Equipments

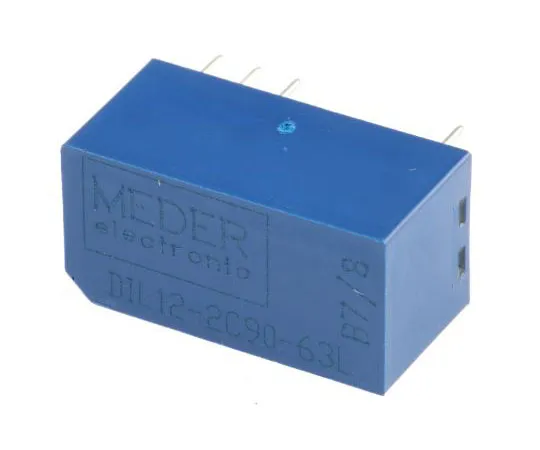

63-7502-02 DPDT Reed Relay, 250 mA, 12V dc DIL12-2C90-63L
Product Description
Product Model: 63-7502-02Product Brand: Meder Features […]
Contact Us
Product Details
Product Model: 63-7502-02
Product Brand: Meder
Features
- DPCO DIL Relay. Compatible with DIL socket Sealed with PU resin Contact Material Rh Operating temperature -20 to +70°C
Spec
- Quantity:1piece
- Contact Configuration : DPDT
- Coil Voltage : 12V dc
- Mounting Type : PCB Mount
- Maximum Switching Voltage AC : 175V ac
- Maximum Switching Voltage DC : 175V dc
- Coil Power : 210mW
- Coil Resistance : 680 Ω
- Length : 20.1mm
- Height : 10.2mm
- Depth : 10.2mm
- Dimensions : 20.1 x 10.2 x 10.2mm
- Isolation Coil To Contact : 3 kV ac, 4.5 kV dc
- Minimum Operating Temperature : -20°C
- CODE No.:349-1774
Related product recommendations
You may also be interested in the following products
Electronic/Electrical Parts and Controll Equipments

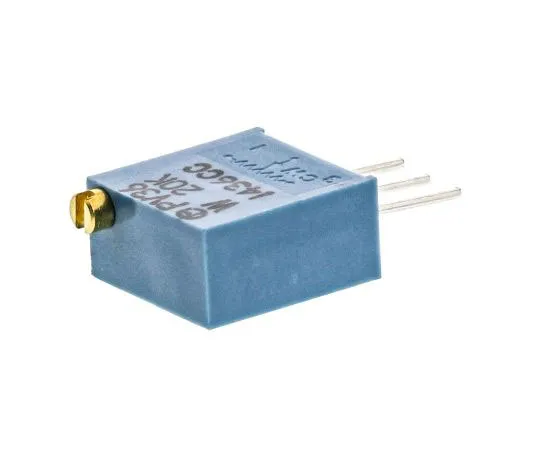

63-7955-48 20kΩ Through Hole Trimmer Potentiometer 0.5W Top Adjust Bourns PV36 Series PV36W203C01B00
