Features

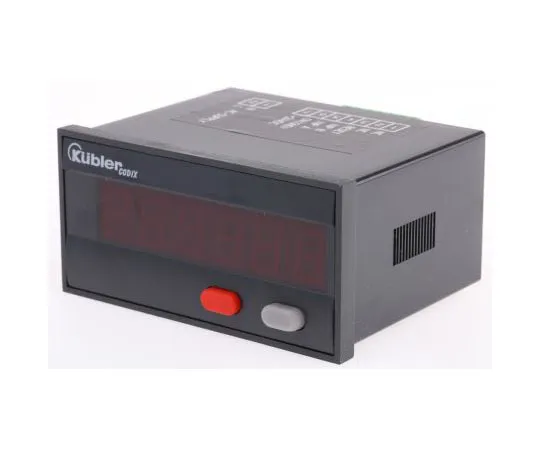

• Timer / Rate Meter / Counter - Codix 544. Easy and secure programming via 2 keys Input pulse shape variable (Schmitt Trigger characteristics) Data retention greater than 10 years. Totaliser and position indicator mode:. Overflow condition indicated by displaying count value with leading zeros Counting with direction input, differential counting, counting with quadrature input (also with pulse doubling) and quadrupaling Set point multiplier and division. Frequency meter and tachometer mode:. Indication in 1/s or 1/min (programmable) Operating principle: combination & gate measurement and period duration measurement. Hour meter and short time meter mode:. Active counting indicated by flashing lowest digits decimal point Timing in s, min, h or h, min, s, (programmable) decimal point fixes the resolution up to 1 ms SET key reset the counter to zero (can be displayed in set up) Operating mode: hour meter or short time meter (dep***ing on resolution) Set point for time counter Resettable Panel cut out: 92 x 45mm
