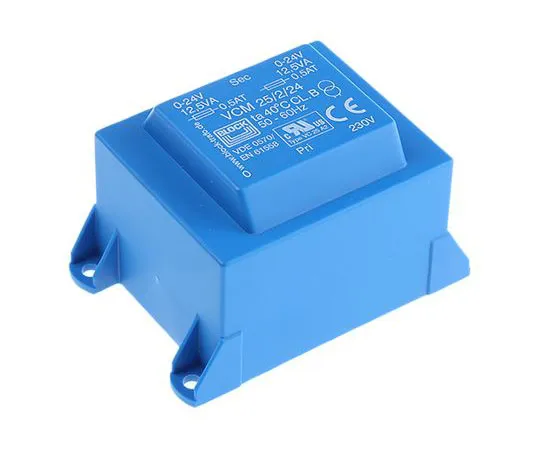

63-7500-64 24V ac 2 Output Through Hole PCB Transformer, 25VA VCM 25/2/24
Product Description
Product Model: 63-7500-64Product Brand: Block Features […]
Contact Us
Product Details
Product Model: 63-7500-64
Product Brand: Block
Features
- EN 61 558 IEC 61558. ENEC, UL recognised. To conform to VDE 0550,UL506 all transformers with 2 x 24V outputs should not have their secondaries connected in series.. PCB Mount 230Vac Primary VC/VCM Series. Single and twin secondary windings for series or parallel connection Vacuum resin moulded to UL94-V0 rating Low inter-winding capacitance Low radiated noise 100% electrical and flash tested Extra fixing points for secure board mounting (25 VA and 36 VA)
Spec
- Quantity:1piece
- Secondary Voltage Rating : 24V ac
- Power Rating : 25VA
- Primary Voltage Rating : 230V ac
- Number of Outputs : 2
- Length : 81.2mm
- Width : 49.2mm
- Depth : 55mm
- Dimensions : 81.2 x 49.2 x 55mm
- Weight : 610g
- Mounting Type : Through Hole
- Maximum Temperature : +40°C
- CODE No.:347-2789
