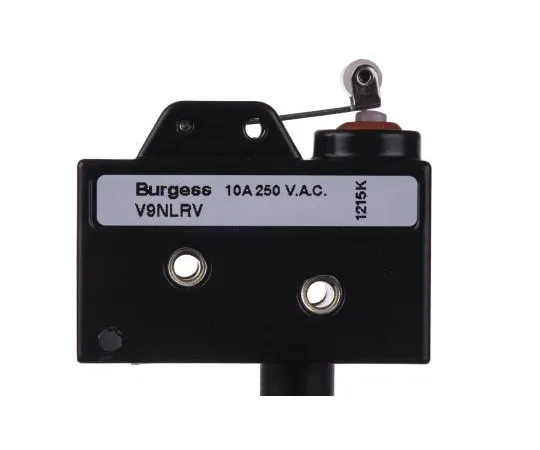

63-7498-39 SP-NO/NC Short Roller Lever Microswitch, 10 A @ 250 V ac 43781
Product Description
Product Model: 63-7498-39Product Brand: Saia-Burgess Fe […]
Contact Us
Product Details
Product Model: 63-7498-39
Product Brand: Saia-Burgess
Features
- UL,CSA. SPDT ; SPST-NC V9 Series. Metal body, IP67 sealed Silver contacts Mechanical Life: 10 ;sup>6 ;/sup> operations Operating temperature range: -40 to +125°C Through-hole mounting Earth kit provided Dimensions: H21mm x W29mm x D53mm
Spec
- Quantity:1bag(20pieces)
- Actuator Type : Short Roller Lever
- Terminal Type : Pre-wired
- Contact Current Rating : 10 A @ 250 V ac
- Contact Configuration : SP-NO/NC
- IP Rating : IP67
- Operating Force : 6 N
- Minimum Operating Temperature : -10°C
- Maximum Operating Temperature : +85°C
- Contact Material : Silver
- Case Material : Zinc
- Mechanical Life : 10^6Operations
- Release Force : 1.3N
- Operating Temperature Range : -10 → +85°C
- CODE No.:173-9360
