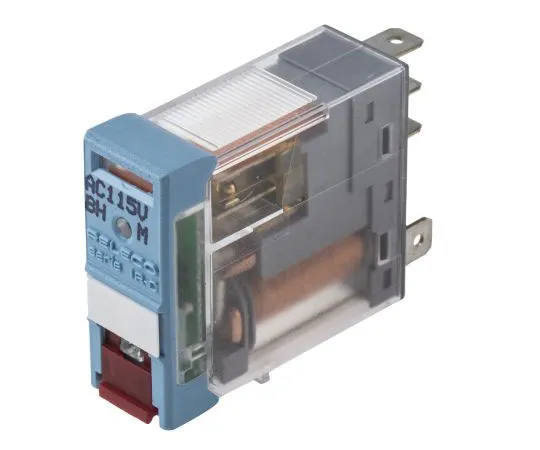

63-7498-30 RelecoC10 SPDT Non-Latching Relay PCB Mount, 115V ac Coil, 6A C10-T13 X / AC 115 V
Product Description
Product Model: 63-7498-30Product Brand: Releco Features […]
Contact Us
Product Details
Product Model: 63-7498-30
Product Brand: Releco
Features
- 10A SPCO Standard / 6A SPCO Bifurcated Contact - C10 Series. Relays have a test button, LED indication and mechanical flag indicator fitted as standard. The test button is colour coded and dual function, push to test or lift to latch. A removable marking label is fitted to each relay. The maximum switching voltage is 250Vac and the operating temperature is -20 to +60°C. Robust industrial terminal blades Bifurcated (for low level signal switching) and non-bifurcated contact versions available Din rail socket only 16mm wide Bridge bar available
Spec
- Quantity:1piece
- Coil Voltage : 115V ac
- Coil Power : 1.1W
- Coil Resistance : 7.3 kΩ
- Isolation Coil To Contact : 5kV
- Contact Configuration : SPDT
- Mounting Type : PCB Mount
- Switching Current : 6A
- Terminal Type : Quick Connect
- Maximum Switching Voltage AC : 250V ac
- Maximum Switching Voltage DC : 30V dc
- Height : 35.4mm
- CODE No.:341-5247
