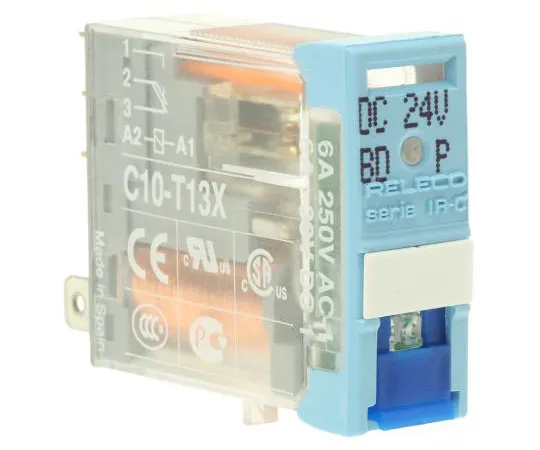

63-7498-27 RelecoC10 SPDT Non-Latching Relay PCB Mount, 24V dc Coil, 6A C10-T13X / DC 24 V
Product Description
Product Model: 63-7498-27Product Brand: Releco Features […]
Contact Us
Product Details
Product Model: 63-7498-27
Product Brand: Releco
Features
- 10A SPCO Standard / 6A SPCO Bifurcated Contact - C10 Series. Relays have a test button, LED indication and mechanical flag indicator fitted as standard. The test button is colour coded and dual function, push to test or lift to latch. A removable marking label is fitted to each relay. The maximum switching voltage is 250Vac and the operating temperature is -20 to +60°C. Robust industrial terminal blades Bifurcated (for low level signal switching) and non-bifurcated contact versions available Din rail socket only 16mm wide Bridge bar available
Spec
- Quantity:1piece
- Coil Voltage : 24V dc
- Coil Power : 650mW
- Coil Resistance : 742 Ω
- Isolation Coil To Contact : 5kV
- Contact Configuration : SPDT
- Mounting Type : PCB Mount
- Switching Current : 6A
- Terminal Type : Quick Connect
- Number of Poles : 1
- Height : 35.4mm
- CODE No.:341-5219
