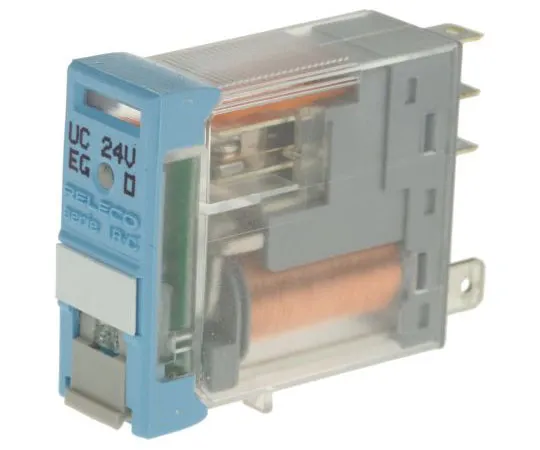

63-7498-24 RelecoC10 SPDT Non-Latching Relay Plug In, 24V ac/dc Coil, 10A C10-A10BX / AD 24 V
Product Description
Product Model: 63-7498-24Product Brand: Releco Features […]
Contact Us
Product Details
Product Model: 63-7498-24
Product Brand: Releco
Features
- 10A SPCO Standard / 6A SPCO Bifurcated Contact - C10 Series. Relays have a test button, LED indication and mechanical flag indicator fitted as standard. The test button is colour coded and dual function, push to test or lift to latch. A removable marking label is fitted to each relay. The maximum switching voltage is 250Vac and the operating temperature is -20 to +60°C. Robust industrial terminal blades Bifurcated (for low level signal switching) and non-bifurcated contact versions available Din rail socket only 16mm wide Bridge bar available
Spec
- Quantity:1piece
- Coil Voltage : 24V ac/dc
- Coil Power : 1.1W
- Coil Resistance : 290 (ac) Ω, 742 (dc) Ω
- Isolation Coil To Contact : 5kV
- Contact Configuration : SPDT
- Mounting Type : Plug In
- Switching Current : 10A
- Terminal Type : Quick Connect
- Maximum Switching Voltage AC : 250V ac
- Maximum Switching Voltage DC : 30V dc
- Height : 35.4mm
- CODE No.:341-5168
Related product recommendations
You may also be interested in the following products
Electronic/Electrical Parts and Controll Equipments
Electronic/Electrical Parts and Controll Equipments

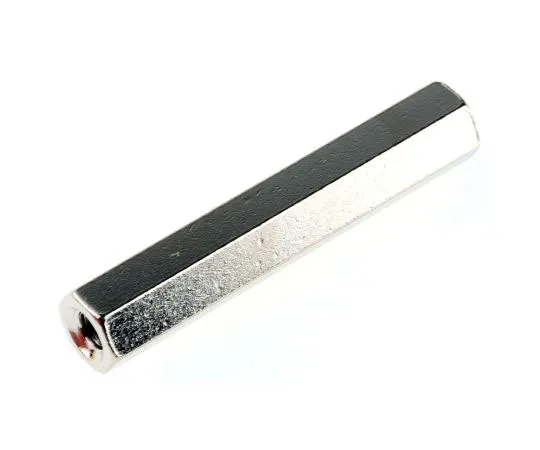

63-8007-98 RS PRO Brass Hex Standoff Female/Female, 40mm, M4 x M4 806-6708
