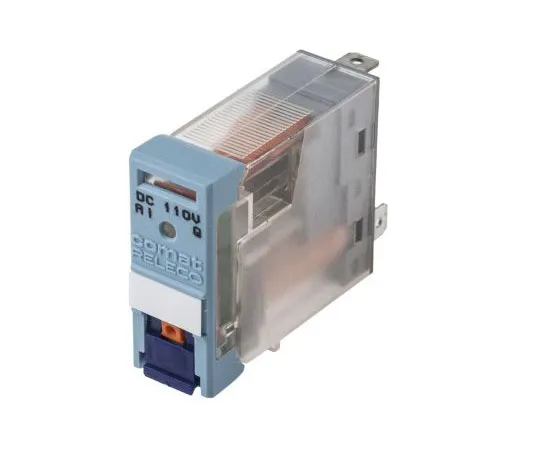

63-7498-23 RelecoC10 SPDT Non-Latching Relay PCB Mount, 110V dc Coil, 10A C10-A10X / DC 110 V
Product Description
Product Model: 63-7498-23Product Brand: Releco Features […]
Contact Us
Product Details
Product Model: 63-7498-23
Product Brand: Releco
Features
- 10A SPCO Standard / 6A SPCO Bifurcated Contact - C10 Series. Relays have a test button, LED indication and mechanical flag indicator fitted as standard. The test button is colour coded and dual function, push to test or lift to latch. A removable marking label is fitted to each relay. The maximum switching voltage is 250Vac and the operating temperature is -20 to +60°C. Robust industrial terminal blades Bifurcated (for low level signal switching) and non-bifurcated contact versions available Din rail socket only 16mm wide Bridge bar available
Spec
- Quantity:1piece
- Coil Voltage : 110V dc
- Coil Power : 650mW
- Coil Resistance : 19.9 kΩ
- Isolation Coil To Contact : 5kV
- Contact Configuration : SPDT
- Mounting Type : PCB Mount
- Switching Current : 10A
- Terminal Type : Quick Connect
- Number of Poles : 1
- Height : 35.4mm
- CODE No.:341-5152
