Electronic/Electrical Parts and Controll Equipments
63-7495-96 Pudenz 75A CF Car F***, 58V dc 155.0892.5751
Product Description
Product Model: 63-7495-96Product Brand: Pudenz Features […]
Contact Us
Product Details
Product Model: 63-7495-96
Product Brand: Pudenz
Features
- UL Recognised. Illustration shows f*** mounted into battery terminal bracket and insulating nut assembly. CF8 Series Bolt-Down F***s. Compact main f***s for mounting with battery clamp on the battery pole. Compact f***link suitable as main f*** for high current applications Direct mounting eliminates need for f***holder ; improves safety Optional battery mounting clamp bracket (stock no. ; 342-0205 342-0205 ) and insulating nut (stock no. ; 342-0198 342-0198 ) are available to aid with batteries not equipped with M8 bolt terminals
Spec
- Quantity:1piece
- Current Rating : 75A
- F*** Type : CF
- Voltage Rating : 58V dc
- Length : 23.5mm
- Width : 11.5mm
- Height : 20mm
- Body Material : Ceramic
- F*** Speed : F
- Breaking Capacity at Maximum Voltage Rating : 2000 A
- CODE No.:337-7921
Related product recommendations
You may also be interested in the following products
Electronic/Electrical Parts and Controll Equipments
63-6547-08 KEMET 1000μF 250V dc Aluminium Electrolytic Capacitor, Through Hole 40 x 75mm +85°C 40mm 75mm ALP20A102DE250
model: 63-6547-08
brand: KEMET
Electronic/Electrical Parts and Controll Equipments
64-0300-47 TE Connectivity 750kΩ 0.25W Metal Film Fixed Resistor ±0.1% ±15ppm/°C H8750KBYA
model: 64-0300-47
brand: TE Connectivity
Electronic/Electrical Parts and Controll Equipments
63-8006-91 6 Lock Steel Hasp Lockout, 25mm Attachment Point 805-5506
model: 63-8006-91
brand: RS PRO
Electronic/Electrical Parts and Controll Equipments

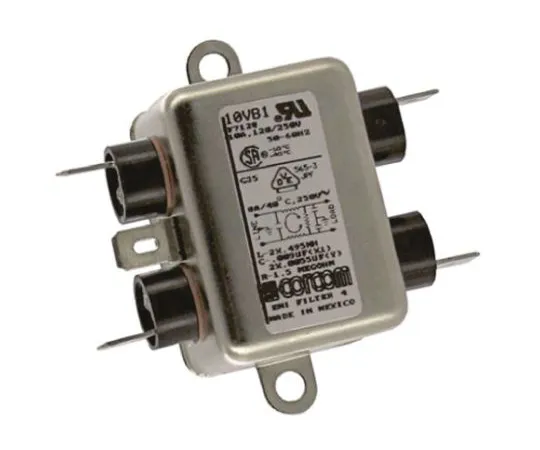

64-0657-17 TE Connectivity 10VB1 Powerline Filter 66.3mm Length,, 10 A, 250 V ac 10VB1
