Electronic/Electrical Parts and Controll Equipments

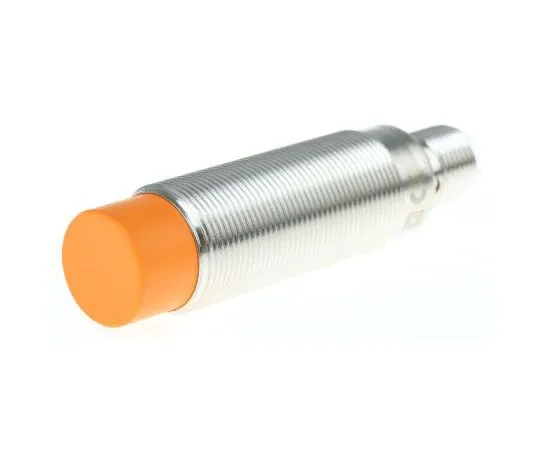

63-7495-63 ifm electronic Inductive Sensor 12 mm Detection, M18 x 1, PNP/NPN-NO/NC, 72mm Length, 10 → 36 V dc supply voltage IG5954
model:
63-7495-63
brand:
ifm electronic
Product Description
Product Model: 63-7495-63Product Brand: ifm electronic […]
Contact Us
Product Details
Product Model: 63-7495-63
Product Brand: ifm electronic
Features
- Quadranorm Plus. Features and benefits. Optalloy plated brass housing. IP67. Four switching status LEDs. A setting LED to indicate optimum sensing range. Operating temperature range -25 → +70°C. 4mA No load current. Short circuit, overload and reverse polarity protection. M12 Plug in, suitable for 4 way connectors
Spec
- Quantity:1piece
- Body Style : Barrel
- Thread Size : M18 x 1
- Output Type : PNP/NPN-NO/NC
- Detection Range : 12 mm
- Terminal Type : M12 - 4 Pin
- Supply Voltage : 10 → 36 V dc
- Length : 72mm
- Maximum DC Voltage : 36V
- Mounting Type : Non Flush
- Switching Current : 100 mA
- Housing Material : Bronze Plated Brass
- Short Circuit Overload Protection : Yes
- CODE No.:335-6485
