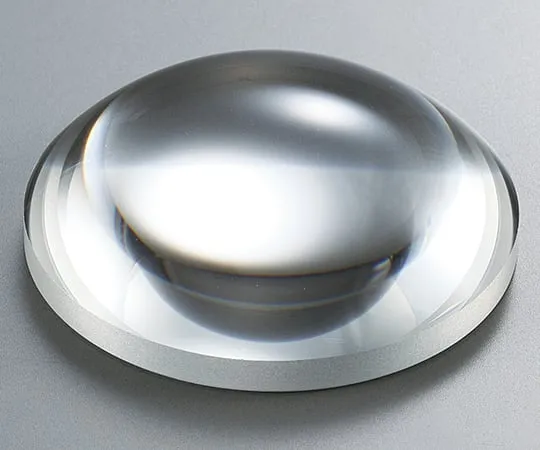

3-6999-01 Flat Convex Lens Φ3mm Focus Distance: 10mm Back Focus: 8.8mm Material: B270 TS-0259S
model:
3-6999-01
category:
Analyzer, Testing Equipment
Product Description
Product Model: 3-6999-01 Features This optical lens hav […]
Contact Us
Product Details
Product Model: 3-6999-01
Features
- This optical lens having positive focal length is mainly ***d for magnification of image, light condensing, and collimation.
Spec
- Material: B270
- Outer diameter (φmm): 3
- Focus distance (mm): 10
- Bag focus (mm): 8.8
- Medium thickness (mm): 2
- Koba meat (mm): 1.81
- Design wavelength: 587.6nm
- Refractive index: 1.523/nd
- Chamfer (45°): 0.1mm
- Tolerance range
- Outer diameter: φ+0/-0.1mm
- Center thickness: ±0.2mm
- Focal length: ±2％
- Surface quality: MIL60-40
- Eccentricity: within 3 minutes (3')
- *When *** as a collimator lens, Use it in the opposite direction.
