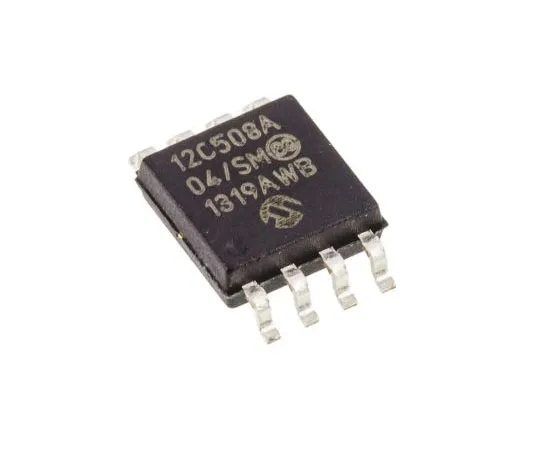

63-7492-34 Microchip PIC12C508A-04/SM, 8bit PIC Microcontroller, 4MHz, 512 EPROM, 8-Pin SOIC PIC12C508A-04/SM
Product Description
Product Model: 63-7492-34Product Brand: Microchip Featu […]
Contact Us
Product Details
Product Model: 63-7492-34
Product Brand: Microchip
Features
- PIC12Cxxx 8-Bit Microcontrollers. This powerful (one micro (μ) second instruction execution) yet easy-to-program (only 33 single word instructions) CMOS OTP-based 8-bit microcontroller packs Microchip s powerful PIC® architecture into an 8-pin package. 6 I/O pins with 25mA source/sink per I/O, 4 oscillator selections including the internal 4MHz RC oscillator with programmable calibration, and Power-on Reset. All new designs should consider using PIC12F variants.
Spec
- Quantity:1piece
- Family Name : PIC12C
- Package Type : SOIC
- Mounting Type : Surface Mount
- Pin Count : 8
- Device Core : PIC
- Data Bus Width : 8bit
- Program Memory Size : 512 x 12 words
- Maximum Frequency : 4MHz
- RAM Size : 25 B
- USB Channels : 0
- Number of SPI Channels : 0
- Typical Operating Supply Voltage : 3 → 5.5 V
- Maximum Operating Temperature : +70 °C
- CODE No.:328-1713
