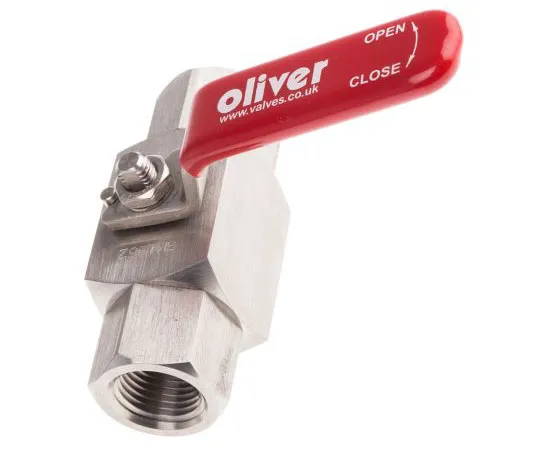

63-7490-74 RS PRO Stainless Steel Line Mounting Hydraulic Ball Valve NPT 1/2 324-5004
Product Description
Product Model: 63-7490-74Product Brand: RS PRO Features […]
Contact Us
Product Details
Product Model: 63-7490-74
Product Brand: RS PRO
Features
- Stainless Steel Ball Valve. 316 stainless steel 2 way ball valves with 3 ball valve options. Valves can be locked in either the open or closed position, panel mount which is cost effective and there is also a firesafe/antistatic option. Reduced bore design Available in BSP and NPT sizes Suitable for *** with water and oil PTFE seals
Spec
- Quantity:1piece
- Manufacturer Series : B6BI
- Number of Ports : 2-way
- Connection Port Thread : NPT 1/2
- Body Material : Stainless Steel
- Seal Material : PTFE (Stem Seal), Teflon/kel-F (Ball Seal)
- Maximum Operating Pressure : 6000 psi
- Thread Standard : NPT
- Thread Size : 1/2in
- Minimum Operating Temperature : -40°C
- Maximum Operating Temperature : +120°C
- CODE No.:324-5004
