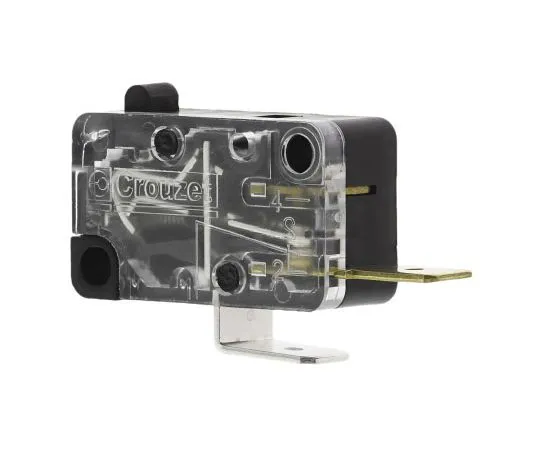

63-7489-47 SP-NC Plunger Microswitch, 6 A @ 250 V ac 83 160 703
Product Description
Product Model: 63-7489-47Product Brand: Crouzet Feature […]
Contact Us
Product Details
Product Model: 63-7489-47
Product Brand: Crouzet
Features
- Positive opening miniswitch. From Crouzet, this miniature 83 160 microswitch is positive opening, and can open the contact even in the event of sticking, in accordance with NFC 63 143 and CEI 947-5-1 standards. With a simple plug-in connection (6.3 x 0.8 mm,) the 83 160 miniature miniwitch also features a transparent polycarbonate cover which allows you to see the opening of the contact. .
Spec
- Quantity:1piece
- Actuator Type : Plunger
- Terminal Type : Tab
- Contact Current Rating : 6 A @ 250 V ac
- Contact Configuration : SP-NC
- Operating Force : 4 N
- Minimum Operating Temperature : -40°C
- Maximum Operating Temperature : +85°C
- Contact Material : Nickel Silver
- Case Material : Polyamide
- Mechanical Life : 10^7Operations
- Release Force : 1.5N
- Operating Temperature Range : -40 → +85°C
- CODE No.:321-8226
