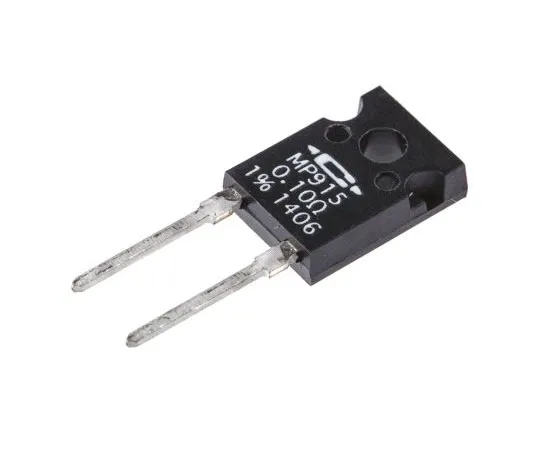

63-7489-02 Caddock 100mΩ 15W Fixed Resistor ±1% 0 → +200ppm/°C MP915-0.10-1%
Product Description
Product Model: 63-7489-02Product Brand: Caddock Feature […]
Contact Us
Product Details
Product Model: 63-7489-02
Product Brand: Caddock
Features
- 15W MP915 Series. Planar thick film cermet resistors UL94V-0 flammability rating High power density Virtually non-inductive Derate linearly from full power at 70°C to zero at 155°C Peak current 20x rated current up to 8ms
Spec
- Quantity:1piece
- Resistance : 100mΩ
- Power Rating : 15W
- Tolerance : ±1%
- Technology : Power Film
- Series : MP915
- Package/Case : TO-126
- Lead Pitch : 5.08mm
- CODE No.:320-4687
