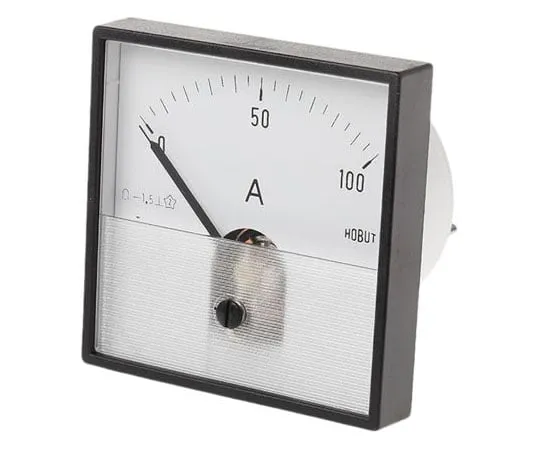

63-7488-83 HOBUT PD72MC Analogue Panel Ammeter 0/100A For Shunt 75mV DC, 72mm x 72mm Moving Coil PD721MCS75MV/2-001 -100A
Product Description
Product Model: 63-7488-83Product Brand: HOBUT Features […]
Contact Us
Product Details
Product Model: 63-7488-83
Product Brand: HOBUT
Features
- Horizontal Scale DC Meters. Accuracy class 1.5, to BS89/IEC51 Ammeter till 50A are for *** without shunt Ammeter 100A (stock no. ; 315-9521 315-9521 ) needs a 100A shunt (stock no. ; 313-788 313-788 ) Ammeter 300A (stock no. ; 315-9537 315-9537 ) needs a 300A shunt (stock no. ; 313-794 313-794 ) Integral scales Flame retardant case to UL94V0 Full scale defection 0 to 75mV Operating temperature range –25 to +40° C 72mm high x 72mm wide, panel cut-out 56mm diameter (suitable cutters stock nos. ; 511-487 511-487 and ; 615-113 615-113 ) U-clamp and 4 pin M3 fixing methods supplied including anti-rotation pin
Spec
- Quantity:1piece
- Maximum Value : 0/100A For Shunt 75mV
- Current Type : DC
- Moving Element : Moving Coil
- Cutout Height : 72mm
- Cutout Width : 72mm
- Depth : 38.5mm
- Meter Accuracy : Class 1.5
- Minimum Temperature : -25°C
- Maximum Temperature : +40°C
- Measurement Range : 0/100A For Shunt 75mV
- CODE No.:315-9521
